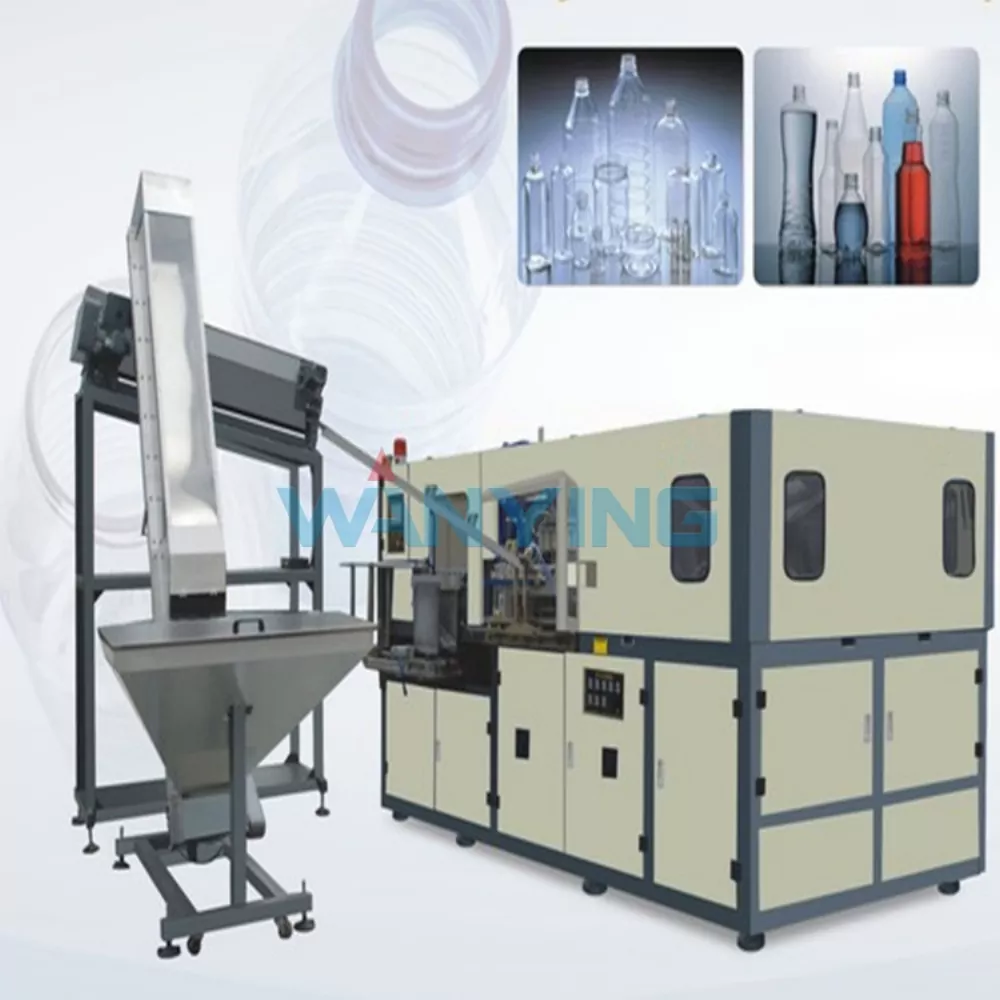

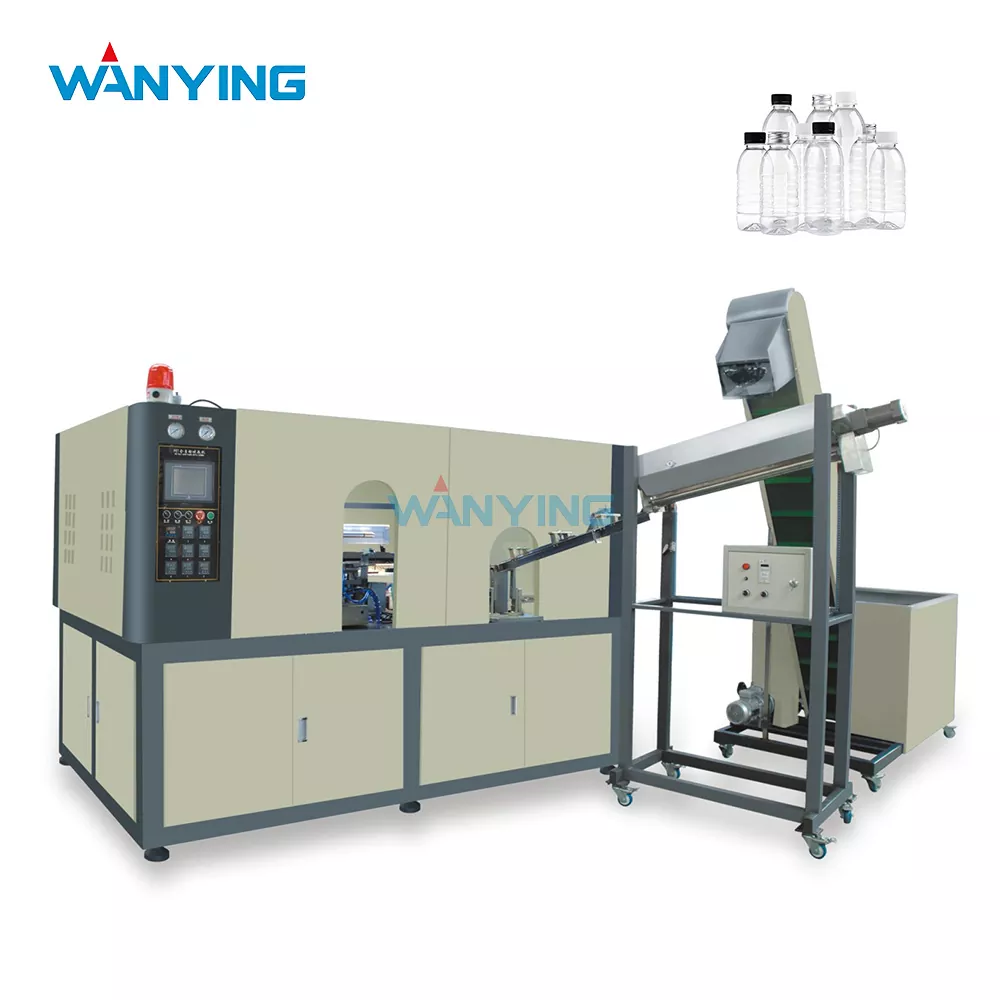

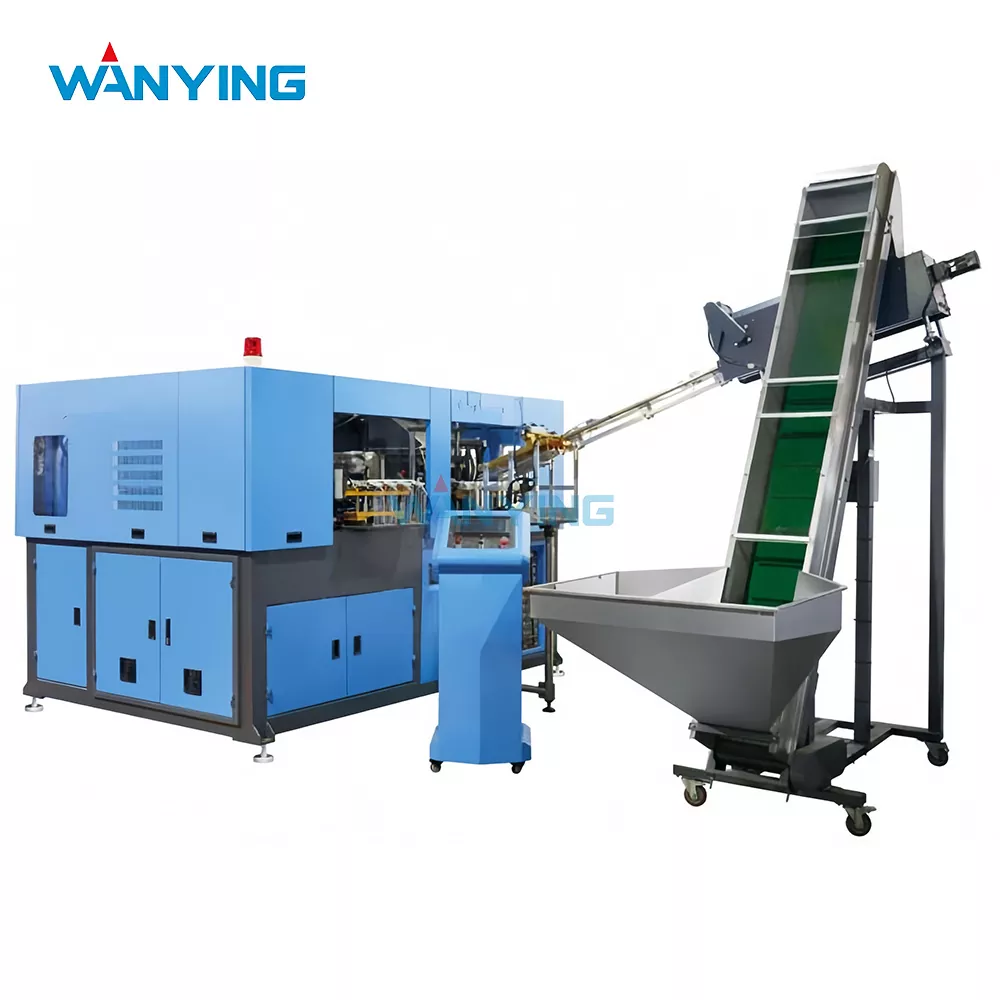

Blow Molding Machine

As a specialized manufacturer with over 1,300 client installations in China, Wanying integrates this blow molder seamlessly with our bottle sorters, fillers, and labelers to create fully synchronized turnkey production systems. Every unit features energy-saving high-frequency heating (rated at ~18kW–22kW depending on cavity count), precision stretching rods, and an intelligent PLC touchscreen interface that stores up to 50 mold recipes. Built with corrosion-resistant stainless steel frameworks and premium pneumatic components (SMC / Festo / Omron), this machine ensures 24/7 reliable operation while reducing scrap rates below 0.3%, making it the ideal front-end partner for any liquid packaging workshop.

Addressing Real Production Pain Points

With over a decade of experience in liquid packaging machinery—particularly in the condiment and fermented bean curd sectors—Wanying has developed this blow molding machine to solve the most critical bottlenecks in bottle production: inconsistent wall distribution, high energy waste, and lengthy mold changeover times.

Unlike generic blow molders that prioritize speed over quality, our machine adopts a dual-stage heating system that gradually raises preform temperature to the optimal stretching point, eliminating "white haze" and stress cracking issues commonly seen in cheap alternatives. The servo-driven stretch rod allows independent adjustment of stretch speed and stroke (blow pressure stable at 25–30 Bar), enabling precise material distribution for lightweight bottles without compromising drop impact resistance.

For customers producing thick sauces, fermented bean curd brine bottles, or carbonated beverage containers, this flexibility ensures every bottle meets the specific pressure and barrier requirements of your final product. The modular tooling design reduces mold exchange to under 15 minutes, supported by quick-release connectors and automatic mold height adjustment. Furthermore, the machine's energy recovery system captures exhaust air for pre-blow operations, cutting compressed air consumption by up to 18% compared to conventional models.

Quality Assurance Backed by Our Factory

Every blow molding machine is manufactured in our 3,000-square-meter standardized facility in Huangshi City, Hubei Province, where we implement strict full-process inspection—from raw material procurement, component processing, to final assembly. Before shipment, each unit undergoes a rigorous 8-hour continuous test run with actual preforms, verifying clamping force, blow pressure stability, and cooling efficiency.

Core electronic components are sourced from reputable international brands to effectively reduce failure rates and extend service life. Our technical team has obtained multiple utility model patents through continuous technological upgrading, keeping our core equipment at the leading level of the domestic filling and packaging industry. We back every machine with a 24-month warranty on core mechanical components and a comprehensive spare parts kit, including heating lamps, stretch rods, and sealing rings.

Real-World Application Case Study

Customer: A mid-sized condiment producer in Guangdong Province, specializing in premium oyster sauce and peanut butter.

Challenge: The company was purchasing preformed bottles from external suppliers, facing frequent quality inconsistencies (uneven neck threads causing capping leaks) and delayed deliveries that disrupted their filling schedule. They needed an in-house blow molding solution that could produce 500ml round bottles with consistent neck dimensions to match their existing capping machine, while maintaining a compact footprint to fit their limited workshop space.

Solution: Wanying deployed a single-cavity blow molding machine with a customized neck calibration system, integrated preform infeed conveyor, and bottle take-out unit. Our engineering team conducted on-site preform heating profile optimization to match the specific PET resin grade used by the customer, achieving a bottle weight variation of ±0.5g and neck ovality below 0.08mm.

Result: After three months of continuous operation, the customer reported a 22% reduction in total bottle cost per unit, eliminated production delays caused by supplier shortages, and improved their capping line efficiency by 15% due to the perfectly uniform neck finish. The blow molding machine paid for itself within 11 months of operation. Today, this customer has ordered a second unit to support their new sauce filling line, citing Wanying's responsive technical support and readily available spare parts inventory as key factors in their repeat purchase.

We can arrange a live video tour of this running production line or invite you to our Hubei factory to test the machine with your own preforms—ensuring full transparency before you commit.

Frequently Asked Questions

Q1: What types of preforms and bottle shapes can this blow molding machine handle?

A: This machine supports standard PET preforms with neck diameters ranging from 28mm to 38mm and preform lengths from 80mm to 210mm. It can produce round, square, oval, and custom-shaped bottles with capacities between 50ml and 2,000ml. For specialty applications like hot-fill juice bottles or carbonated beverage containers, we offer optional heat-set and crystallization neck technologies. Mold design and manufacturing services are also available through our in-house tooling team.

Q2: How does Wanying ensure machine reliability and minimize downtime?

A: We follow a strict full-process quality control system throughout production—every procedure from component machining to finished product delivery undergoes rigorous inspection to ensure no defective products leave our factory. We use internationally recognized pneumatic valves, proximity sensors, and temperature controllers from brands like SMC, Festo, and Omron. Our standard package includes a comprehensive spare parts kit, detailed maintenance manual, and remote diagnostic support. For clients in major production hubs, we maintain local stock of wear parts for same-day dispatch.

Q3: Can this machine be integrated with my existing filling line?

A: Absolutely. The Wanying blow molding machine is designed with modular communication interfaces supporting common industrial protocols (Ethernet/IP, Modbus, and Profibus) to synchronize with upstream preform dryers and downstream filling, capping, and labeling equipment. As a company that has delivered complete filling and packaging solutions to over 1,300 customers, our engineering team provides turnkey integration support, including conveyor layout design, timing screw matching, and PLC logic coordination. We can also supply an integrated 4-in-1 system combining blow molding, rinsing, filling, and capping for complete production line automation.

Q4: Is this machine equipped with safety features for continuous operation?

A: Yes. All Wanying blow molding machines are built with emergency stop buttons, safety door interlock switches, and overload protection sensors as standard. The stainless-steel guarding fully complies with basic industrial safety requirements, ensuring operator protection during high-speed production.
