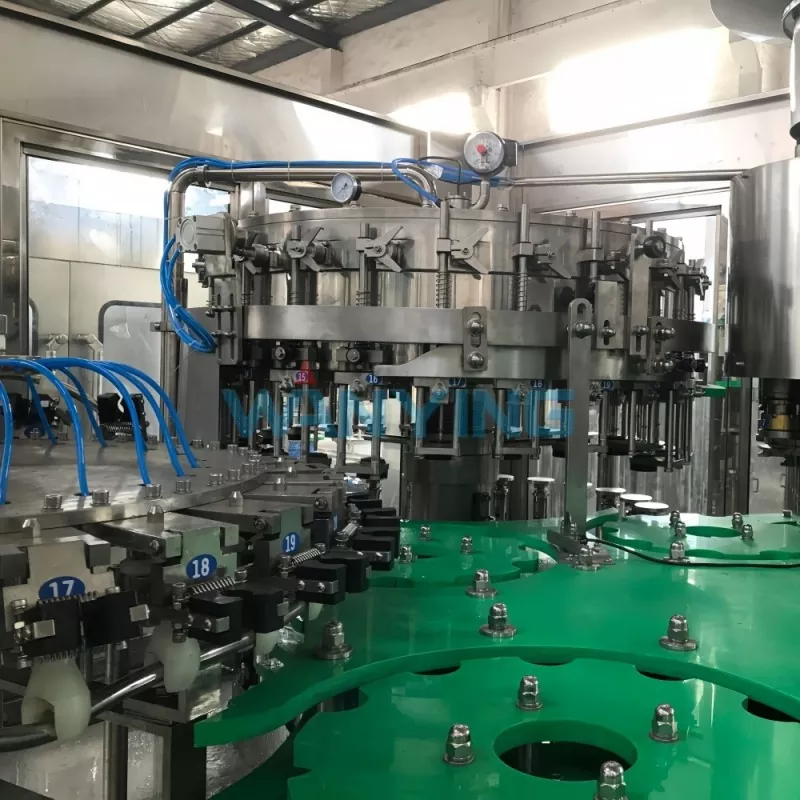

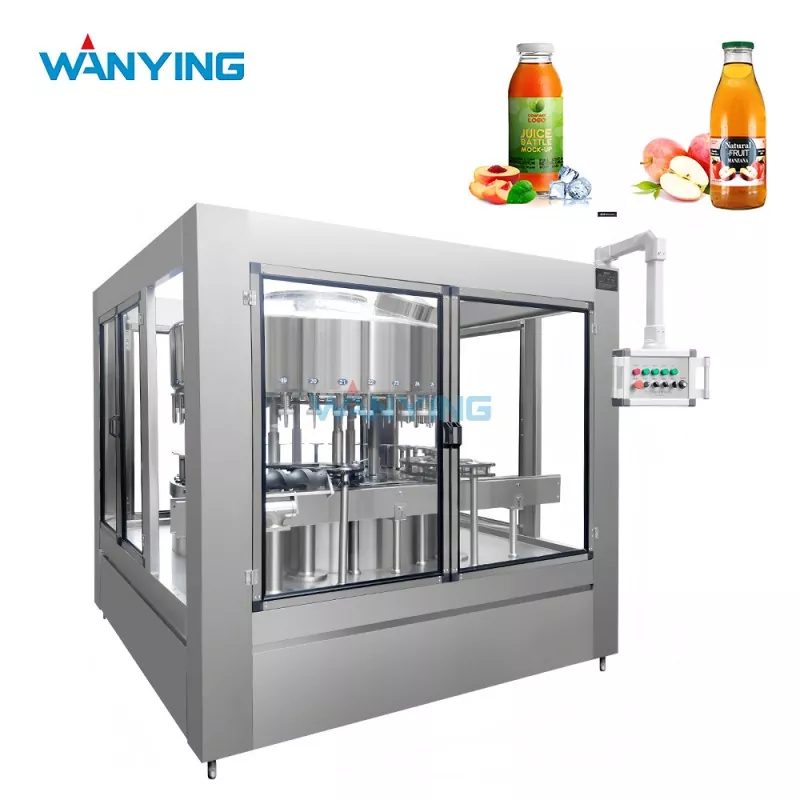

Glass Bottle Filling Machine

The Wanying Glass Bottle Filling Machine is a comprehensive solution specifically engineered for filling liquids and semi-liquids into glass containers – from soy sauce and vinegar to fruit juices and pulpy beverages. It directly addresses the unique challenges of glass bottle processing: dimensional tolerances, breakage risks, and hot-fill requirements. Backed by over 1,300 real-world installations, we deliver a turnkey experience that minimizes downtime and maximizes your production ROI.

Product Definition

1. Precision Targeting: Purpose-Built for Glass Bottle Challenges

This machine integrates high-accuracy filling, aluminum foil sealing, and capping functions into one streamlined unit. It is specifically designed to overcome common glass bottle production headaches – inconsistent bottle dimensions, fragile handling, and the need for elevated filling temperatures – ensuring smooth, reliable operation.

2. Core Functionality: An All-in-One Filling Workflow

The equipment consolidates key processes: bottle conveying, volumetric or flow-meter filling, and sealing (foil or screw cap). You can operate it as a standalone unit or seamlessly integrate it into our fully automated production lines, connecting from bottle washing to cartoning – minimizing manual handling and contamination risks at every transfer point.

3. Material Versatility: From Thin Liquids to Thick Pastes

Whether you are filling low-viscosity purified water, high-viscosity oyster sauce, pulpy fruit juice, or chunky salad dressings, this machine handles it all. By simply exchanging filling valve types, you achieve drip-free, precise filling across multiple product lines with a single machine – significantly reducing your capital expenditure on diverse equipment.

4. Customization DNA: Rejecting Generic Mass Production

At Wanying, we refuse to offer "one-size-fits-all" solutions. Our engineers actively engage with you prior to manufacturing, taking into account your actual bottle dimensions, product characteristics, and throughput targets. We custom-tailor the infeed star wheels, filling nozzle diameters, and submersion depths. The result: a machine that works perfectly from the very first day of installation, eliminating lengthy on-site trial-and-error.

Application Scenarios

1. Condiment Industry (Soy Sauce, Vinegar, Cooking Oil)

Pain Point Solved: Eliminate sticky drips that contaminate labels and cause uneven fill levels in high-salt, high-acid environments.

Value Proposition: Our drip-proof filling nozzles, combined with a constant-pressure filling system, ensure spotless bottle necks and perfectly uniform liquid levels – meeting the strict aesthetic standards required for supermarket shelf placement.

2. Beverage & Fruit Juice Industry (Pulpy Drinks, Fresh Juices)

Pain Point Solved: Prevent clogging of filling valves by fruit fibers and avoid glass breakage during hot-fill processes.

Value Proposition: Featuring large-flow, non-clogging filling structures and supporting hot-fill temperatures from 80–95°C. Integrated temperature compensation ensures product sterility while maintaining glass thermal stability.

3. Dairy & Health Products (Milk, Liquid Probiotics)

Pain Point Solved: Address stringent sanitation requirements and the need for micro-dosing accuracy.

Value Proposition: Constructed with corrosion-resistant stainless steel and equipped with CIP (Clean-in-Place) ready filling heads for thorough bacterial elimination. High-precision metering pumps guarantee filling error within ±1%, satisfying rigorous cost-control accounting.

4. Fermented Bean Curd & Pickled Vegetables (Fermented Tofu Brine, Pickle Juice)

Pain Point Solved: Handle uniquely shaped bottles (square, oval, or custom designs) and brines containing oil or fine particulates.

Value Proposition: Our custom positioning chucks for irregular bottles, paired with our dedicated brine draining machine, ensure accurate brine injection without spillage, keeping the bottle threads clean for reliable cap sealing.

Technical Advantages

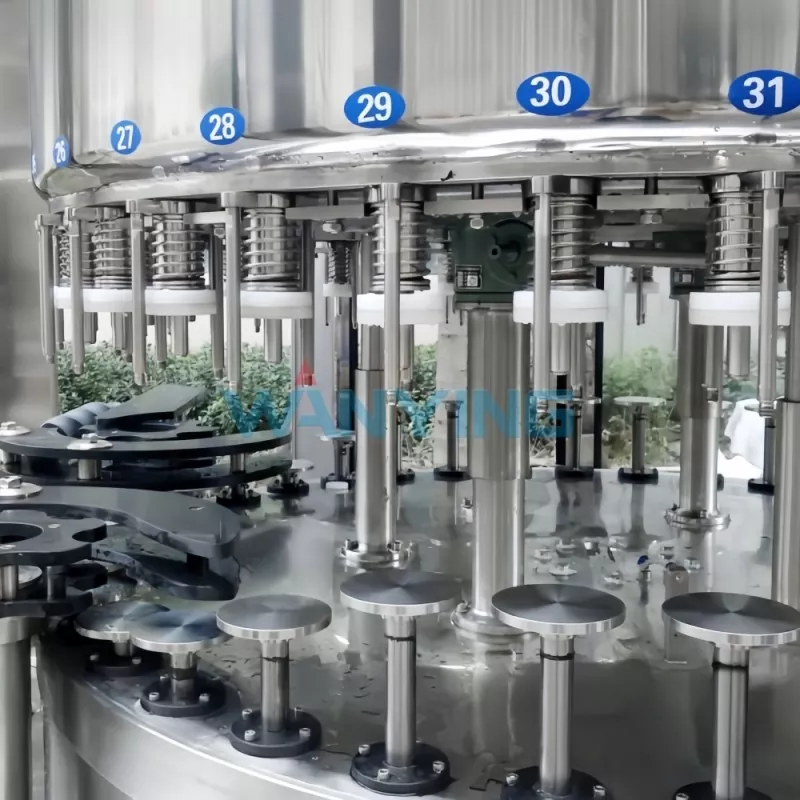

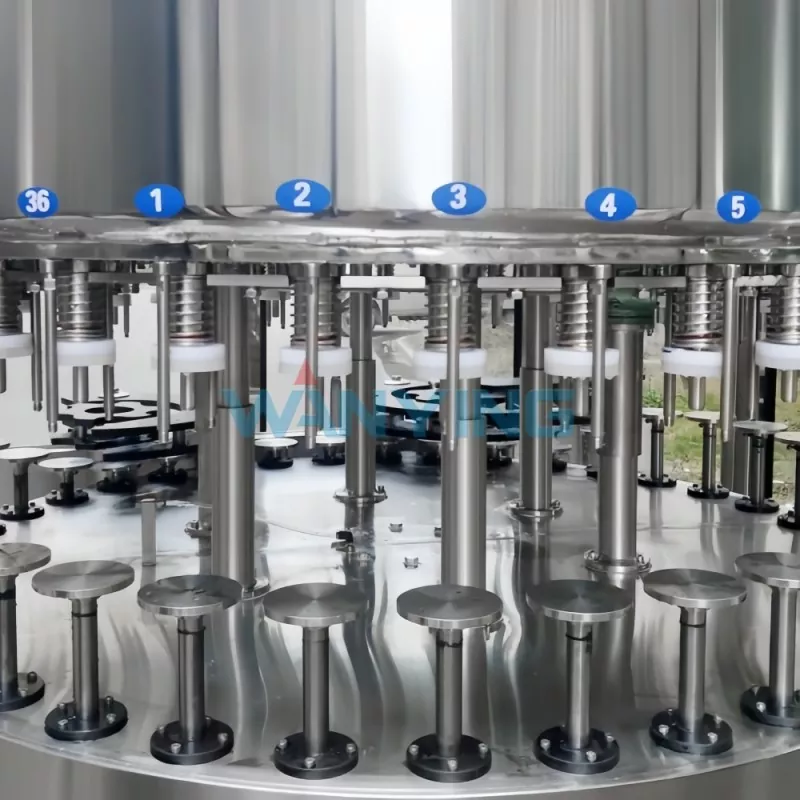

1. Structural Design: Quick-Release Filling Valves – 50% Faster Maintenance

Detailed Explanation: Traditional machines require time-consuming disassembly of the entire valve block for cleaning. Our modular, tool-free quick-release valves can be removed and reassembled within 3 minutes per head. This dramatically reduces daily sanitation downtime and changeover time – critical for maintaining continuous production schedules.

2. Precision Control: Imported PLC + High-Accuracy Flow Meter – Uniform Fill Levels

Detailed Explanation: Equipped with Siemens or Mitsubishi PLC systems paired with precision flow meters or load cells. The system supports one-touch recipe switching for different bottle volumes and features automatic compensation against voltage fluctuations or viscosity changes. Fill accuracy is consistently maintained within ±1.5%.

3. Bottle Adaptability: Flexible Infeed Augers – Tackling Irregular Bottles

Detailed Explanation: To address inconsistencies in glass bottle thickness and shape (especially with recycled or custom bottles), we design flexible infeed augers and centering devices. This ensures stable, high-speed indexing and positioning, preventing jams or misalignment even with non-standard glass packaging.

4. Quality Assurance: Tier-1 Brand Core Components – Built to Last 10+ Years

Detailed Explanation: All critical electrical (photoelectric sensors, relays) and pneumatic components (cylinders, solenoid valves) are sourced from globally recognized brands – SMC, Festo, Schneider, or equivalent. This choice dramatically reduces failure rates under harsh production conditions and extends the machine's service life beyond a decade.

Frequently Asked Questions (FAQ)

Q1: We operate a small-batch, high-variety production model. Will changeovers be troublesome?

A: Not at all. Wanying machines are designed for flexible production. We include a "recipe memory function" on the touchscreen – simply select the pre-stored bottle profile, and the system automatically adjusts filling height, submersion depth, and volume. Paired with our quick-change positioning fixtures, changeovers typically take under 15 minutes – perfect for "high-mix, low-volume" production demands.

Q2: Our product is viscous or contains fruit fibers. Can it be filled?

A: This is precisely where Wanying excels. We offer multiple valve solutions: large-passage "open-first, close-later" nozzles for particulates, and piston or rotary-lobe pump systems for high-viscosity products. We strongly recommend sending us your actual product samples for free benchmarking tests – see the performance with your own eyes before purchasing.

Q3: Is the machine made of food-grade materials? How corrosion-resistant is it?

A: Absolutely. All product-contact parts are constructed from SUS304 or 316L stainless steel, fully compliant with international food safety standards. For high-salt or acidic environments (e.g., soy sauce, vinegar), we offer an optional PTFE (Teflon) coating to prevent corrosion and avoid metal-ion contamination, safeguarding your product's original flavor profile.

Q4: What after-sales installation and support does Wanying provide?

A: We deliver a true "turnkey" service. Every machine undergoes 48 hours of real-product, real-bottle testing before leaving our factory. Upon delivery, our experienced engineers will supervise installation, commissioning, and provide comprehensive on-site training for your operators. For after-sales, we guarantee a 24-hour response to any fault reports, and critical spare parts are stocked in our warehouse to ensure your production is never halted.

Cooperative customer coverage industries

Industrial Automation & Electrical Components : OMRON, SIEMENS

Conclusion

The Glass Bottle Filling Machine by Wanying is a high-precision and stability-focused filling solution designed for premium liquid packaging industries. By combining gentle bottle handling technology with ultra-accurate filling control, it ensures product integrity, visual packaging quality, and efficient large-scale production.
