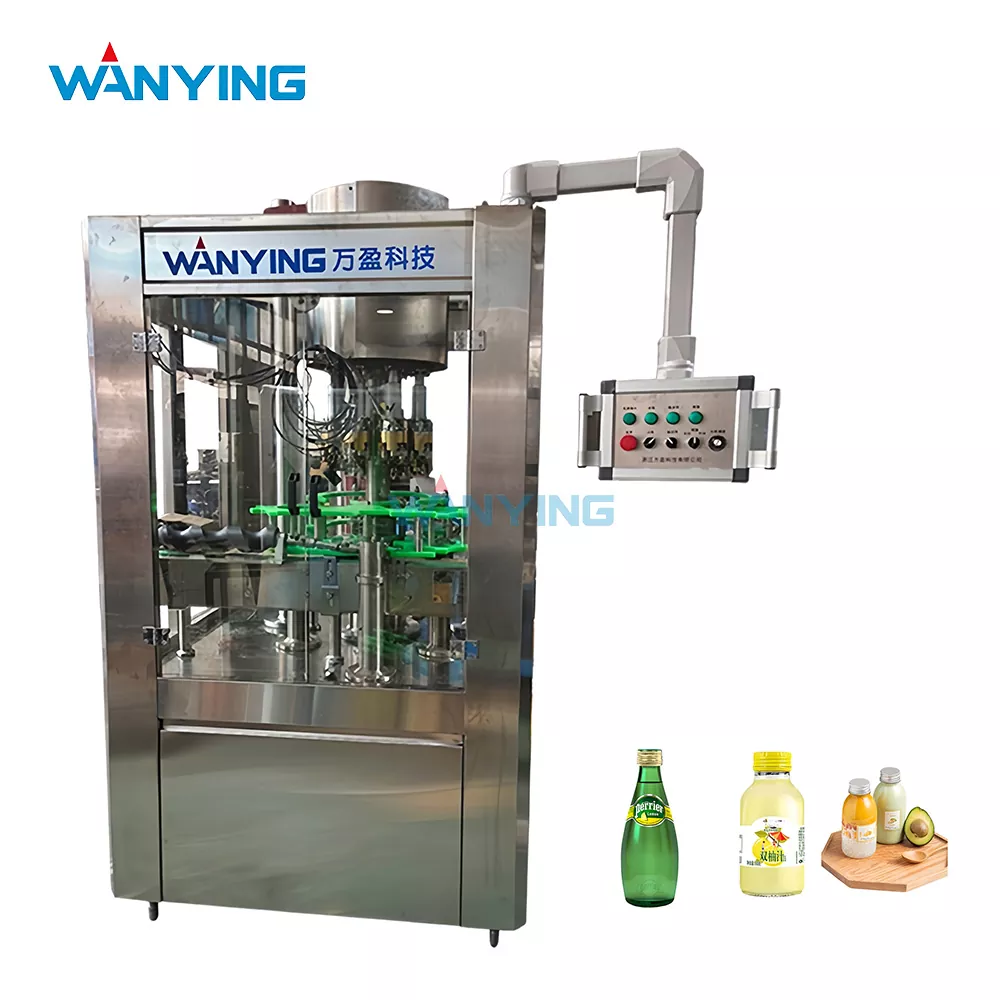

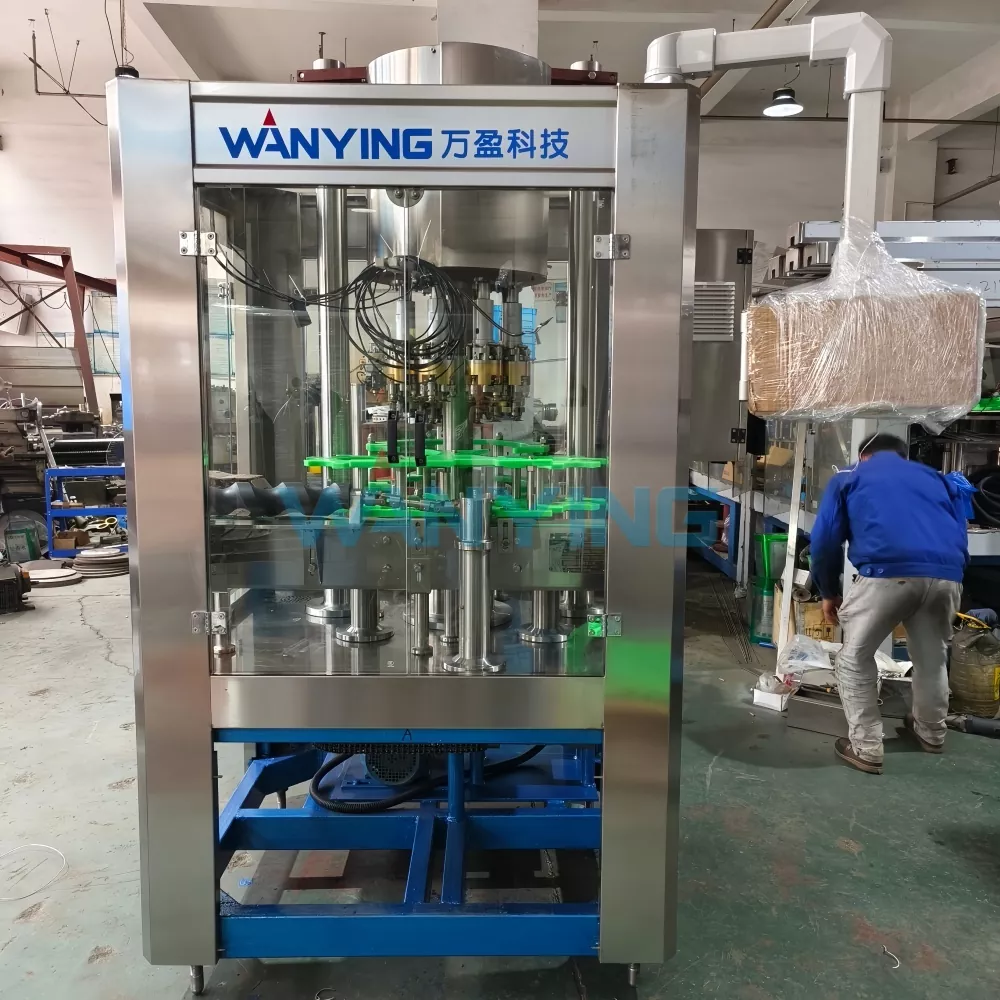

Aluminum Screw Capping Machine for Glass Bottles

Wanying is a professional manufacturer specializing in filling and packaging equipment for beverages, condiments, dairy, and liquid food industries. With a 3000 ㎡ production base, 1300+ project experience, and multiple patented technologies, the company provides customized Aluminum Screw Capping Machine for Glass Bottles solutions and full-line integration from bottle handling to final packaging.

Precision Manufacturing & Premium Materials

1. Food-Grade Stainless Steel Construction

The machine frame and product-contact components are manufactured from SUS304 stainless steel, with SUS316 available for applications requiring higher corrosion resistance.

Benefits

· Resistant to corrosion caused by acidic beverages and condiments.

· Easy to clean and sanitize.

· Suitable for continuous food-grade production environments.

· Long service life with minimal structural deformation.

2. Precision Torque Control System

A stable screw capping mechanism applies consistent torque to every aluminum cap, preventing both loose sealing and excessive tightening.

Benefits

· Improves sealing consistency.

· Reduces cap damage.

· Minimizes product leakage during transportation.

· Protects bottle necks from excessive pressure.

3. Stable Mechanical Transmission

The transmission system adopts precision-machined components with optimized mechanical synchronization to ensure smooth operation during continuous production.

Benefits

· Stable machine performance.

· Reduced vibration.

· Lower mechanical wear.

· Consistent production quality over long operating periods.

Why Choose Wanying?

Choosing the right capping equipment is not only about production speed—it directly affects sealing quality, product safety, maintenance costs, and long-term production efficiency. The Wanying Aluminum Screw Capping Machine for Glass Bottles is designed to solve the common challenges manufacturers face in daily production.

Key Advantages at a Glance

1. Higher Production Efficiency

· Smooth bottle conveying and synchronized capping improve production continuity.

· Quick format adjustments reduce downtime during product changeovers.

2. Better Packaging Consistency

· Accurate torque control minimizes leakage, cap deformation, and sealing defects.

· Uniform capping enhances finished product appearance and transportation safety.

3. Lower Total Cost of Ownership

· Durable mechanical structure reduces wear.

· Easy maintenance lowers labor costs.

· Reliable electrical components minimize unexpected downtime.

Low Maintenance Cost & Long Service Life

1. Durable Mechanical Structure

The equipment uses wear-resistant mechanical components designed for long-term industrial operation.

Advantages

· Fewer replacement parts.

· Longer maintenance intervals.

· Lower operating costs.

· Reliable performance under continuous production.

2. Convenient Daily Maintenance

The machine adopts a modular structure that allows operators to perform routine cleaning and inspections quickly.

Advantages

· Reduced maintenance time.

· Easy access to key components.

· Faster troubleshooting.

· Improved production uptime.

3. High-Quality Electrical Components

Core electrical components are selected from reliable industrial brands to ensure stable machine control and reduce unexpected failures.

Advantages

· Stable electrical performance.

· Lower equipment downtime.

· Improved production reliability.

· Reduced maintenance expenses throughout the equipment lifecycle.

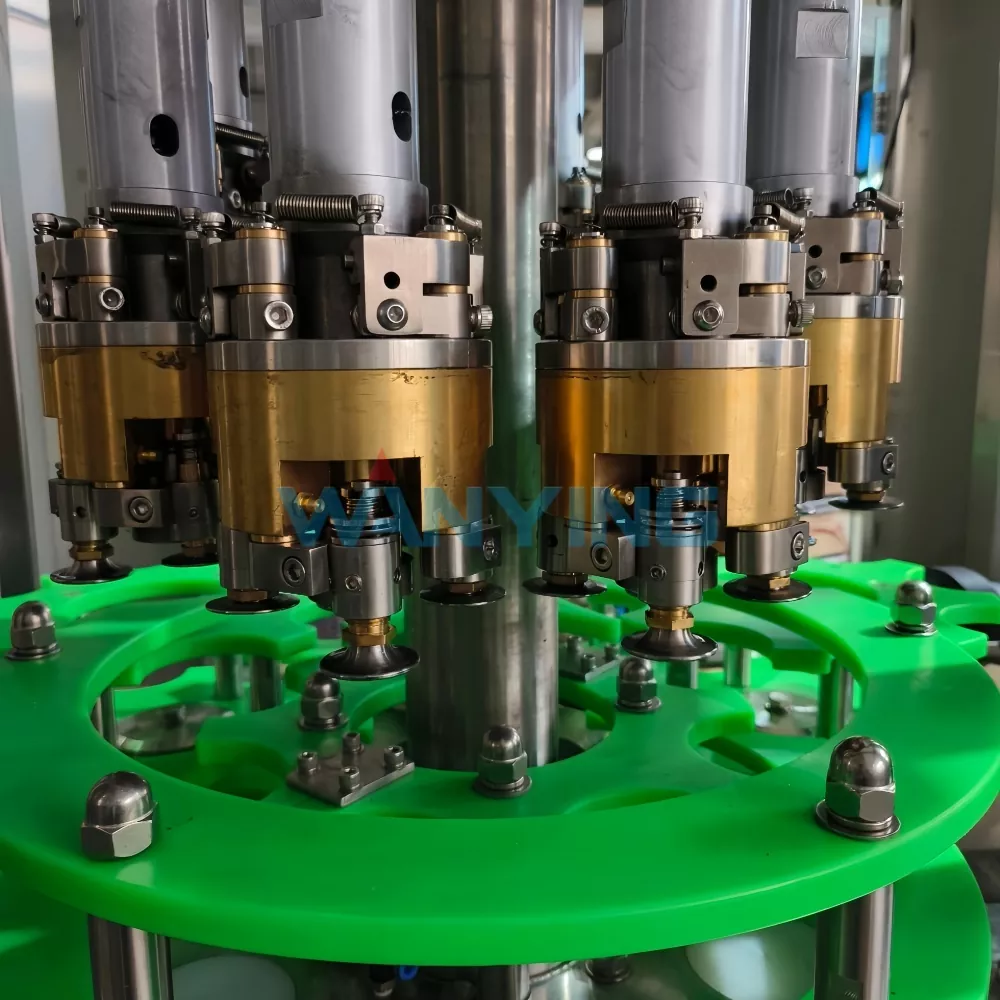

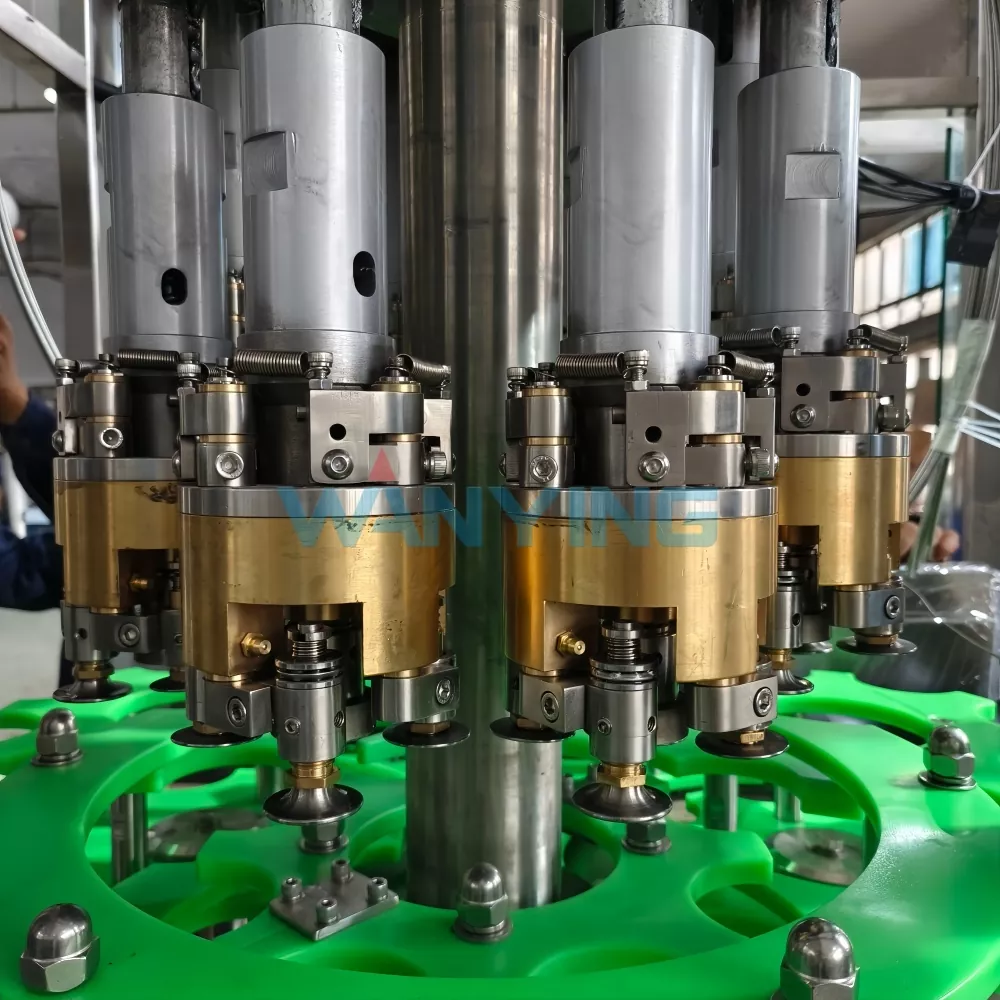

Screw Capping Principle & Torque Control Mechanism

As the aluminum cap is placed onto the glass bottle mouth, the servo-driven capping head descends and rotates at a controlled speed. A built-in torque sensor provides real-time feedback to the PLC: when the preset torque value (2–8 Nm) is reached, the servo motor instantly stops and releases the cap. This closed-loop control ensures every cap is tightened with consistent torque, eliminating human error and preventing under-tightening (leakage) or over-tightening (glass damage).

Aluminum Cap Sealing Surface Compatibility:

Smooth sealing surface: standard torque settings

Embossed/ridged caps: slightly higher torque (+0.5–1.0 Nm) to ensure seal compression

Lined caps (with inner seal): torque adjusted to compress liner without deformation

Anti-Misalignment & Rejection System

The machine is equipped with photoelectric sensors to detect missing caps, tilted caps, or cross-threaded caps. Any abnormal condition triggers an automatic rejection mechanism, preventing defective bottles from reaching downstream labeling or packaging stages and reducing manual inspection costs.

Service Commitment

Warranty: 12 months on complete machine (excluding consumables)

Spare parts availability: 1-year guarantee for capping heads, torque sensors, grippers, and PLC units

Standard consumables kit included: gripper inserts, seal rings, sensor spare units, drive belts

Technical support: Remote diagnosis within 2 hours

Frequently Asked Questions

1. What bottle sizes can the Aluminum Screw Capping Machine handle?

The machine can be customized to accommodate various glass bottle diameters and heights. Our engineering team configures the machine according to your bottle samples and production requirements.

2. Is the machine suitable for different aluminum cap specifications?

Yes. Different capping heads and adjustment settings can be configured to match your aluminum cap dimensions and sealing requirements.

3. Can the machine be integrated into an existing filling line?

Absolutely. The Aluminum Screw Capping Machine for Glass Bottles is designed for easy integration with existing filling, labeling, sterilizing, and packaging equipment, helping manufacturers upgrade automation without rebuilding the entire production line.

4. How difficult is daily maintenance?

Routine maintenance is straightforward. Regular cleaning, lubrication of moving parts, and periodic inspection of wear components are generally sufficient to keep the machine operating efficiently.

5. Can Wanying provide customized solutions?

Yes. Wanying specializes in customized filling and packaging equipment. We can tailor the machine according to your bottle dimensions, cap specifications, production capacity, factory layout, and automation requirements to ensure the equipment matches your actual production process.
