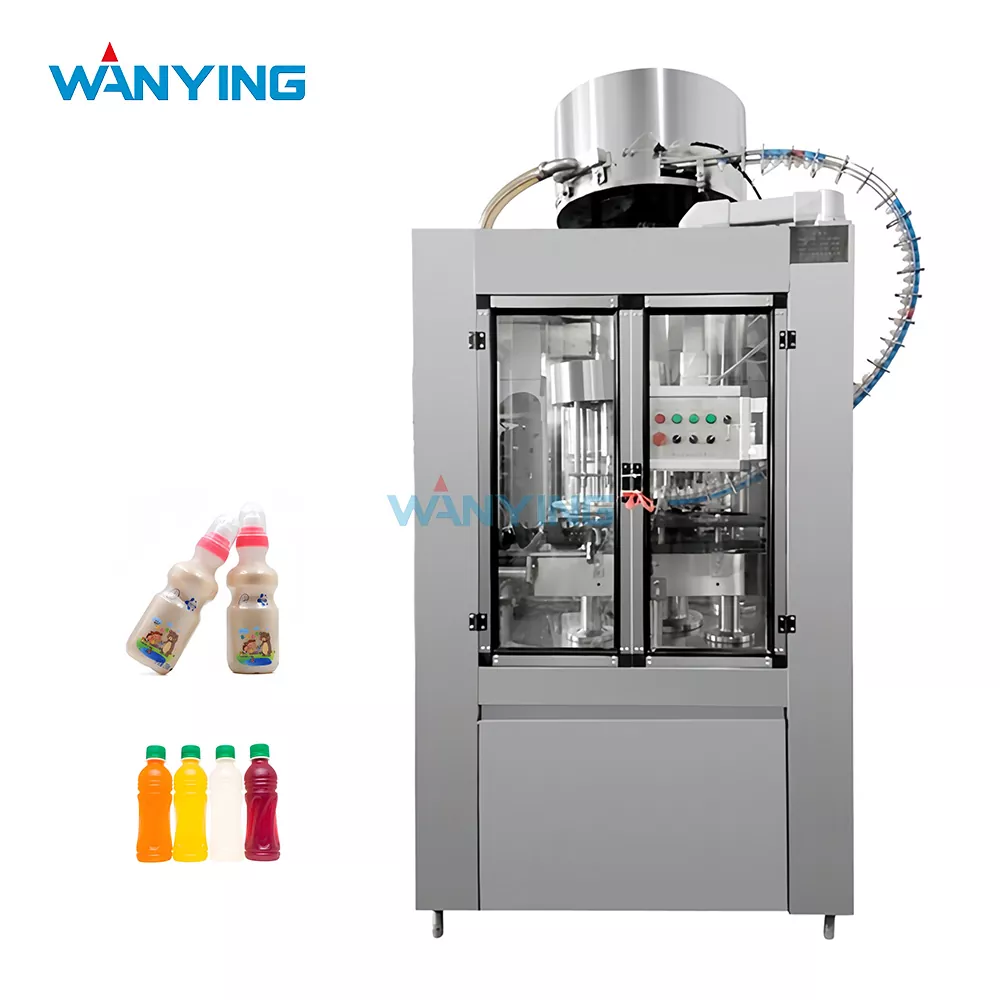

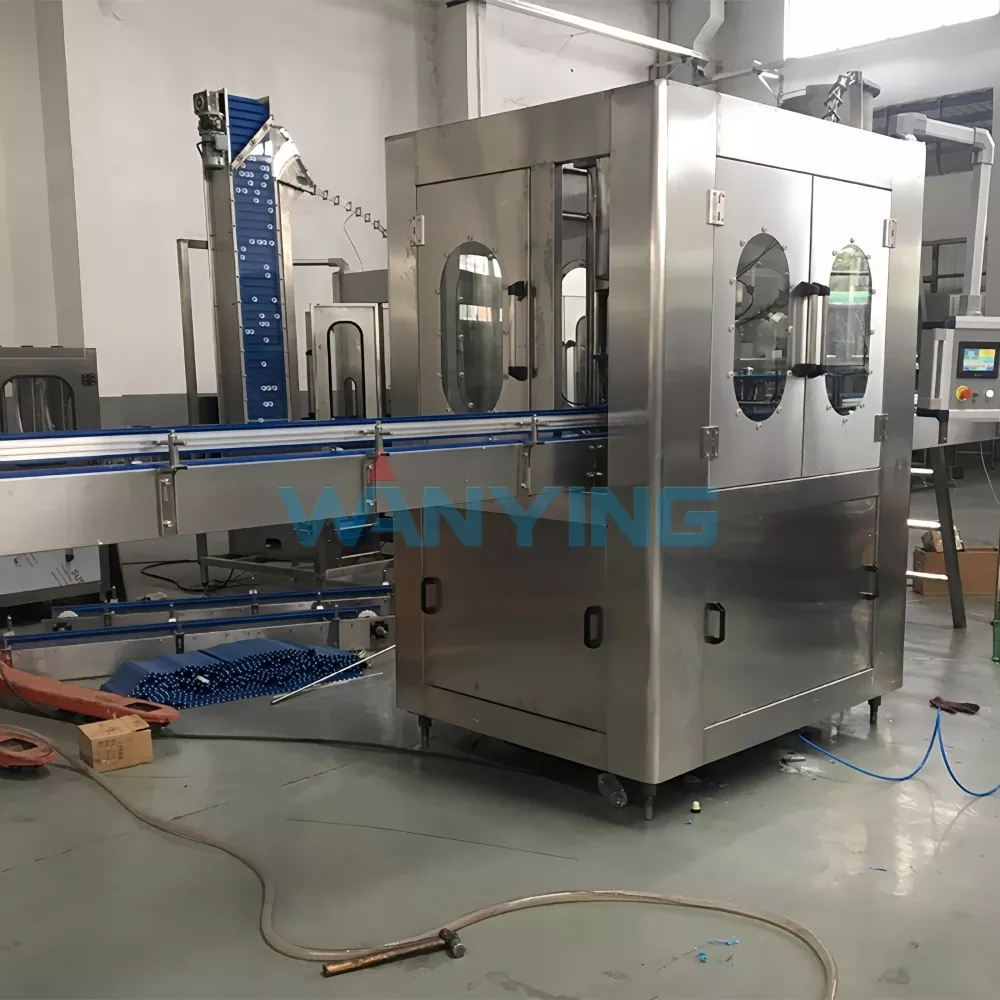

High-Speed Capping Machine

Wanying is a specialized manufacturer of filling and packaging equipment for beverage, condiment, dairy, and liquid food industries. With a 3000 ㎡ production base, multiple patented technologies, and over 1300 successful production line projects, the company delivers customized High-speed capping machine solutions and integrated turnkey packaging systems for global industrial buyers seeking stable and efficient automation upgrades.

Product Parameters

1. Flexible Production Capacity

The High-speed Capping Machine is available in multiple configurations to match different production requirements.

· Production Capacity: 2,000–18,000 Bottles/Hour (customizable)

· Applicable Bottle Diameter: 30–120 mm

· Bottle Height: 80–320 mm

· Cap Diameter: 20–80 mm

· Capping Accuracy: ≥99.8%

· Power Supply: 220V/380V, 50/60Hz

· Machine Material: SUS304 Stainless Steel (SUS316 optional)

· Control System: PLC + Touch Screen HMI

· Speed Adjustment: Variable Frequency Drive (VFD)

2. Wide Bottle Compatibility

One machine can handle multiple packaging formats.

Suitable for:

· PET bottles

· Glass bottles

· HDPE bottles

· Plastic containers

· Round bottles

· Square bottles

· Customized bottle shapes

Compatible cap types include:

· Screw caps

· Plastic caps

· Aluminum caps

· Flip-top caps

· Tamper-evident caps

3. Multiple Industry Applications

The equipment is widely used for:

· Fruit juice

· Dairy products

· Purified water

· Soy sauce

· Vinegar

· Oyster sauce

· Chili sauce

· Cooking oil

· Liquid seasonings

· Health supplements

High-Speed Capping Principle & Dynamic Torque Compensation

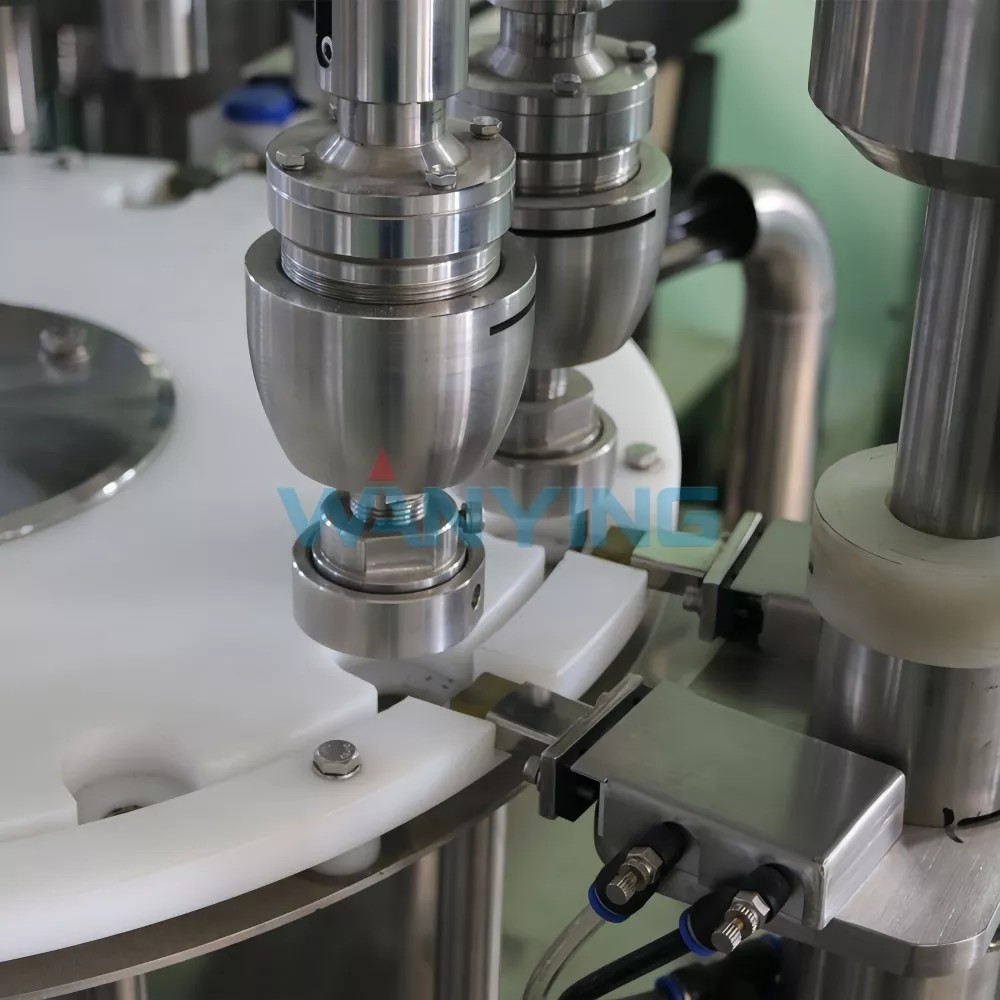

At speeds up to 18,000 bottles per hour, traditional clutch-based capping systems struggle with torque consistency due to mechanical wear and response lag. The Wanying High-Speed Capping Machine employs a servo-driven direct-drive system with dynamic torque compensation:

Real-time torque adjustment – the system continuously monitors motor current and adjusts output torque within 5 milliseconds to compensate for variations in cap material hardness, bottle thread tolerance, and line speed fluctuations

Soft-start & soft-stop profiling – acceleration and deceleration curves are optimized to prevent cap skipping, cross-threading, and bottle neck stress at high speeds

Adaptive speed control – automatically reduces capping speed during difficult caps (e.g., non-round bottles, oversized caps) and resumes full speed for standard runs

High-Speed vs. Standard Capping Performance:

High-Speed Line Integration & Synchronization

At high production speeds, the capping machine must synchronize precisely with upstream filling and downstream labeling equipment. The Wanying High-Speed Capping Machine features:

Line-speed synchronization – automatically matches the speed of upstream filling machines via encoder feedback, eliminating bottle jams and spacing errors

Variable-frequency drive (VFD) compatibility – smooth speed adjustment without stopping the line, allowing seamless changeover between production shifts

PLC communication protocol support – integrates with major industrial protocols (Modbus, Profibus, EtherNet/IP) for centralized line control and remote monitoring

Reject gate integration – connects with downstream inspection systems to automatically reject defective bottles without interrupting production flow

Technical Features

Professional After-sales Service

1. Customized Solution Support

Every production line is different.

Wanying provides customized engineering solutions based on:

· Bottle samples

· Cap specifications

· Production capacity

· Factory layout

· Existing production equipment

This ensures the High-speed Capping Machine integrates smoothly into your production process.

2. Complete Installation & Technical Support

Our engineering team provides comprehensive technical assistance.

Services include:

· Installation guidance

· Equipment commissioning

· Operator training

· Production optimization

· Online technical support

Customers can start production quickly with minimal learning time.

3. Reliable Spare Parts Supply

To reduce production downtime, Wanying offers:

· Long-term spare parts support

· Fast replacement recommendations

· Maintenance guidance

· Equipment upgrade consultation

· Lifetime technical assistance

Our goal is to keep your production line running efficiently for years.

Service Commitment for High-Speed Production

High-speed equipment requires faster response times—every hour of unplanned downtime represents significantly more lost output than on slower lines. Wanying provides:

Warranty: 12 months on complete machine (excluding consumables)

Spare parts availability: 1-year guarantee for capping heads, torque sensors, grippers, drive belts, and PLC units

Standard consumables kit included: gripper inserts (2 sets), seal rings, sensor spare units, drive belts (1 set)

Emergency technical support: Remote diagnosis within 1 hour (priority response for high-speed lines);

Frequently Asked Questions

1. What cap types can this High-speed Capping Machine handle?

The machine supports screw caps, plastic caps, aluminum caps, flip-top caps, tamper-evident caps, and other customized cap designs. Special capping heads can be configured according to customer requirements.

2. Can the machine work with different bottle sizes?

Yes. By adjusting the guide rails and changing a few components when necessary, one machine can accommodate multiple bottle sizes and shapes, making it suitable for flexible production.

3. Can it be connected to an automatic filling line?

Absolutely. The High-speed Capping Machine is designed for seamless integration with bottle unscramblers, filling machines, sterilizers, labeling machines, inkjet printers, and cartoning systems to build a complete automated packaging line.

4. Is the machine suitable for food-grade production?

Yes. The machine is manufactured with food-grade stainless steel materials and is designed for hygienic production environments commonly found in the food, beverage, dairy, and condiment industries.

5. Does Wanying provide customized solutions?

Yes. Wanying specializes in customized filling and packaging equipment. Our engineering team can tailor machine configurations according to your bottle type, cap style, production capacity, filling material, and factory layout to achieve the best production performance.
