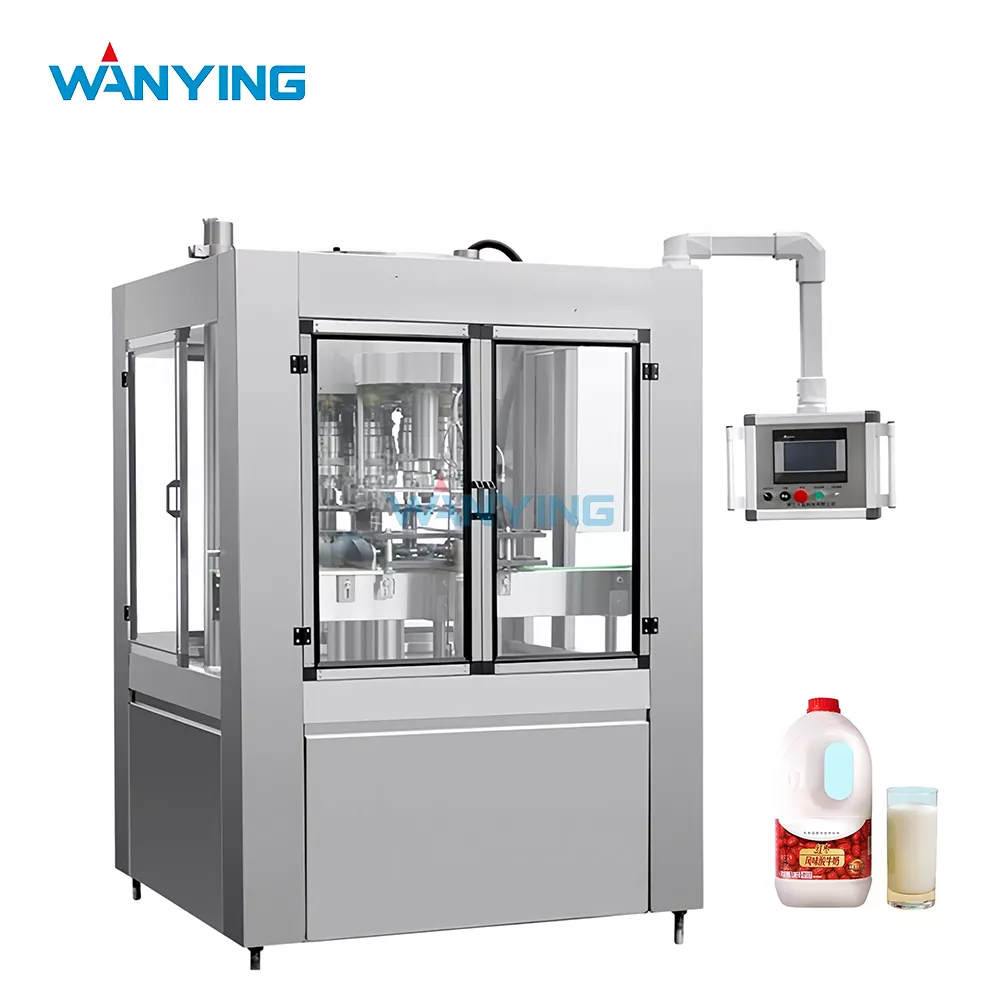

Fully Automatic Capping Machine

Wanying is a professional manufacturer focusing on filling and packaging automation systems for beverage, condiment, dairy, and liquid food industries. Backed by a 3000 ㎡ production base, patented technologies, and more than 1300 engineering projects, the company provides Fully Automatic Capping Machine solutions and complete turnkey production line integration for global industrial clients seeking stable and efficient automation upgrades.

Product Definition & Functional Overview

The Fully Automatic Capping Machine is an industrial packaging equipment designed to automatically apply and tighten caps onto filled bottles in high-speed production environments. It replaces manual or semi-automatic capping processes and ensures each bottle is sealed with consistent torque and alignment.

What It Does:

· Automatically feeds caps into the production system

· Sorts and orients caps for correct positioning

· Applies caps onto filled bottles in a continuous flow

· Tightens caps with controlled torque for secure sealing

· Rejects improperly capped bottles to maintain quality consistency

Core Function Positioning:

It acts as the final sealing unit in a liquid packaging production line, ensuring product safety, leakage prevention, and packaging integrity before labeling and cartoning.

Capping Principle & Closed-Loop Torque Control

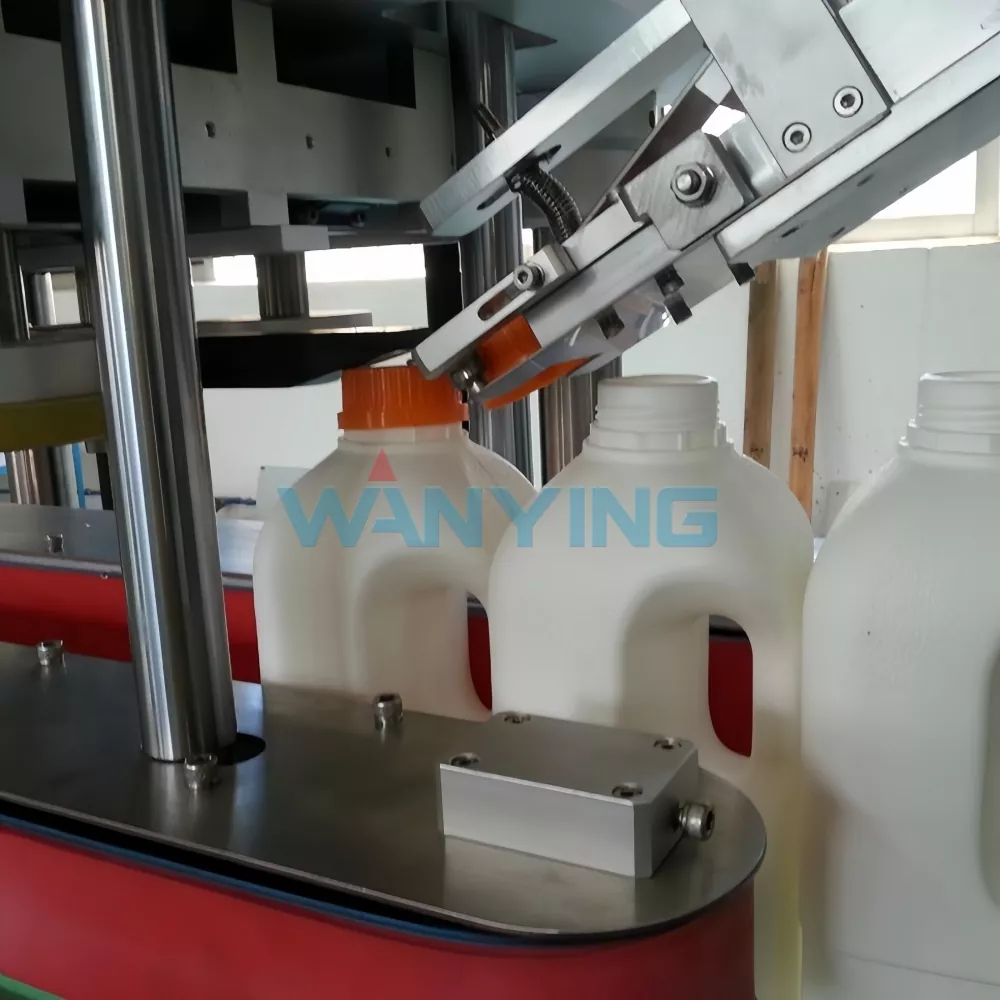

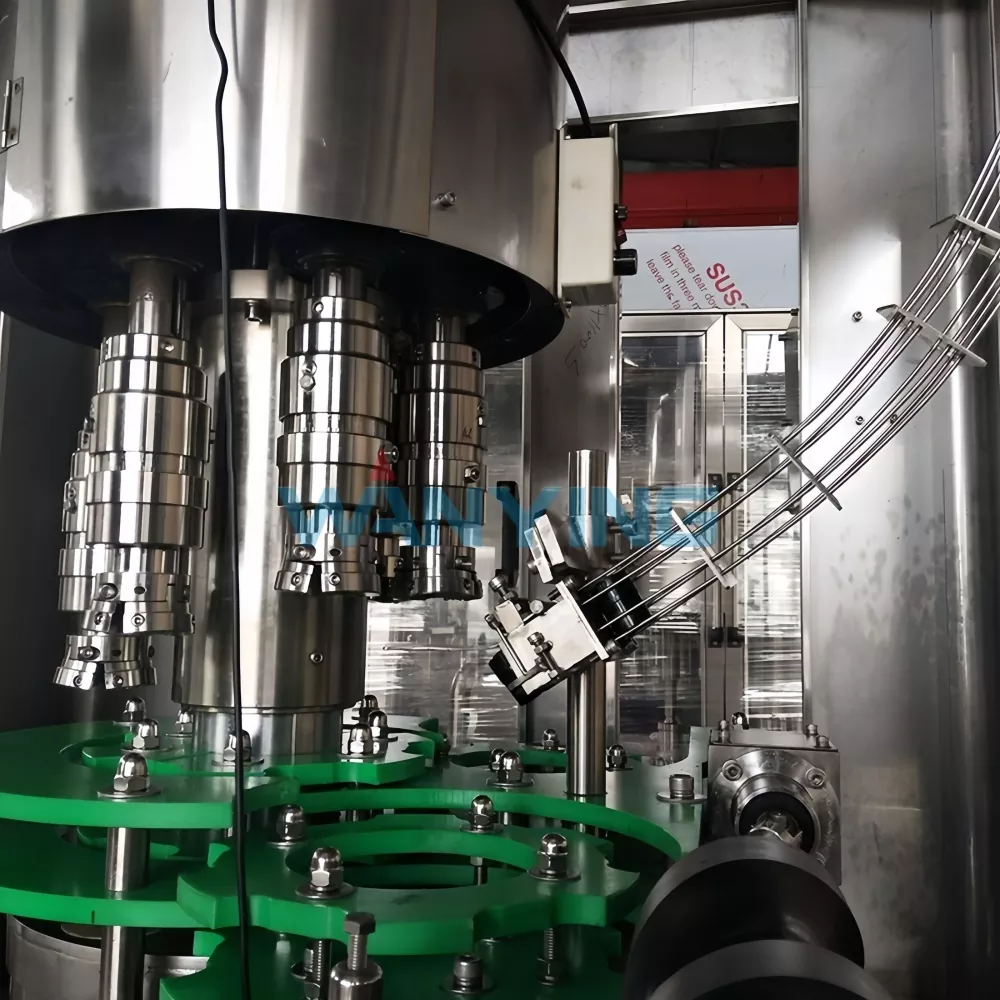

The Fully Automatic Capping Machine utilizes a servo-driven capping head with real-time torque feedback. As the cap is placed onto the bottle mouth, the capping head descends and rotates at a controlled speed. A built-in torque sensor provides continuous feedback to the PLC: when the preset torque value (1–12 Nm) is reached, the servo motor instantly stops and releases the cap. This closed-loop control ensures every cap is tightened with consistent torque, eliminating human error and preventing under-tightening (leakage) or over-tightening (cap/thread damage).

Torque Selection Guide by Cap Type:

Plastic screw caps (15–30mm): 1–4 Nm

Aluminum caps (20–40mm): 3–7 Nm

Tamper-evident caps (25–50mm): 5–10 Nm

Large-diameter caps (40–60mm): 8–12 Nm

Anti-Misalignment & Rejection System

The machine is equipped with photoelectric sensors to detect:

Missing caps – no cap detected before capping station

Tilted caps – cap angle deviation beyond tolerance

Cross-threaded caps – abnormal torque profile during capping

Any abnormal condition triggers an automatic rejection mechanism, preventing defective bottles from reaching downstream labeling or packaging stages and reducing manual inspection costs.

Process Technology Introduction

The machine adopts a synchronized automated workflow combining mechanical precision and intelligent control systems to ensure stable and efficient capping performance.

Core Process Flow:

1. Cap feeding and automatic sorting system

2. Cap orientation and alignment mechanism

3. Bottle positioning via conveyor synchronization

4. Servo-controlled torque capping operation

5. Quality inspection and automatic rejection system

6. Finished bottle output to downstream packaging line

Technical Process Comparison Table

Packaging & Delivery Process

Wanying follows strict packaging and logistics standards to ensure safe delivery and ready-to-install equipment condition.

Packaging Protection Measures:

· Protective film wrapping for dust and moisture resistance

· Reinforced wooden crate packaging for structural safety

· Shock-absorbing internal fixation for transport stability

· Clearly labeled modules for easy on-site installation

Shipping & Delivery Process:

· Full machine inspection and testing before shipment

· Functional verification under simulated production conditions

· Secure loading and reinforcement for long-distance transport

· Logistics tracking support until delivery completion

· Optional installation guidance upon arrival

This ensures the equipment arrives in stable condition and can be quickly integrated into production lines with minimal setup time.

Service Commitment

Warranty: 12 months on complete machine (excluding consumables)

Spare parts availability: 1-year guarantee for capping heads, torque sensors, grippers, and PLC units

Standard consumables kit included: gripper inserts, seal rings, sensor spare units, drive belts

Technical support: Remote diagnosis within 2 hours; on-site service within 48 hours (domestic)

Premium Components

PLC control: Siemens

Sensors: OMRON / SICK

Pneumatic components: SMC / Airtac

Electrical contactors: Schneider Electric

Servo drives: Yaskawa / Schneider

Frequently Asked Questions

Q1: Can Fully Automatic Capping Machine adjust automatically for different production speeds?

Yes, the system allows dynamic speed adjustment through PLC control, enabling smooth adaptation between low, medium, and high-speed production requirements.

Q2: What happens if cap feeding is unstable during operation?

The machine is equipped with automatic cap detection and rejection mechanisms to prevent defective sealing and maintain production consistency.

Q3: Is it suitable for fragile glass bottles?

Yes, the torque control system is designed to apply gentle and precise force, preventing damage to glass bottles during capping.

Q4: Can it work with existing production equipment?

Yes, it supports modular integration and can be connected with most standard filling, labeling, and packaging machines.

Q5: How does Wanying ensure long-term reliability?

Through strict material selection, continuous testing, and standardized manufacturing processes, ensuring consistent performance in long-term industrial use.
