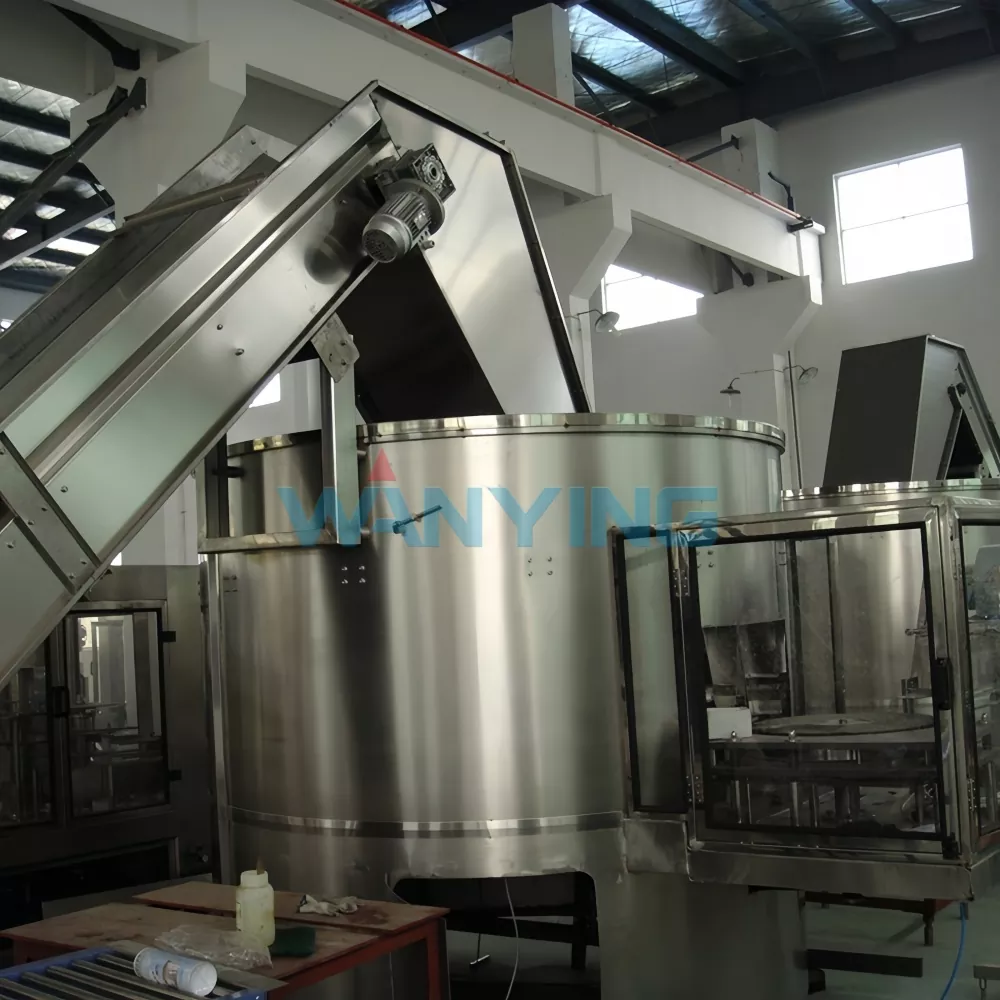

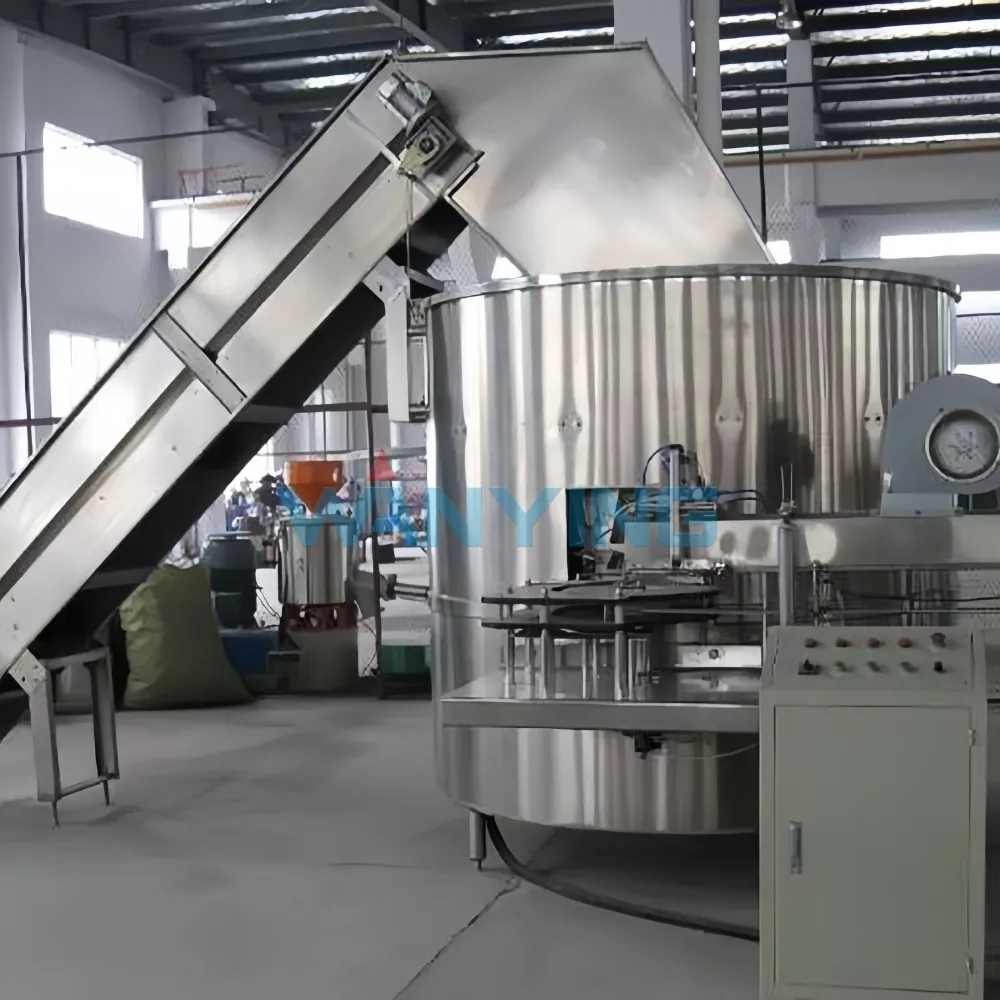

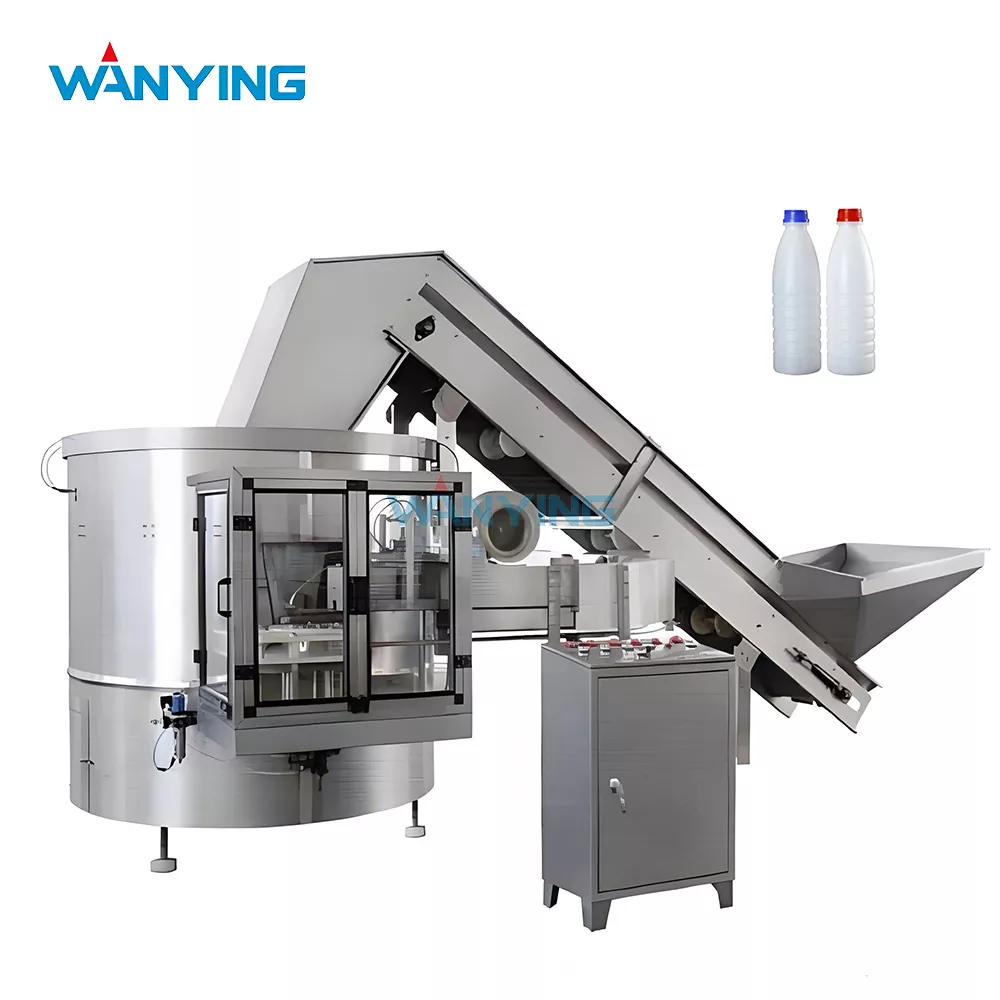

High-Speed Bottle Unscrambler

Product Definition & Functional Overview

A High-speed Bottle Unscrambler is an automated pre-filling packaging machine designed to take randomly stacked or bulk PET bottles and automatically orient, align, and deliver them in a single-direction, continuous flow to downstream production equipment such as filling, capping, and labeling machines.

In simple terms, this machine replaces manual bottle feeding and chaotic bottle sorting with a fully automatic, high-efficiency bottle organizing system.

What It Does:

· Automatically separates and orients mixed bottles

· Converts randomly placed bottles into a uniform upright direction

· Continuously feeds bottles into production lines without interruption

· Ensures stable and synchronized supply for high-speed filling systems

Core Function Positioning:

It serves as the front-end bottling automation module, acting as the “starting engine” of a complete packaging line. Without it, downstream filling and capping equipment cannot operate at full efficiency.

Core Selling Points & Technical Advantages

The Wanying High-speed Bottle Unscrambler is designed with industrial production efficiency and stability in mind.

Key Advantages:

· Ultra-high capacity design (up to 12,000 bottles/hour) for large-scale production

· ≥99.6% sorting accuracy ensures consistent bottle orientation and reduces line stoppage

· Stable continuous feeding eliminates manual bottle loading

· PLC intelligent control enables fully automated operation

· Wide compatibility with 50–120 mm bottle diameters

· Gentle bottle handling system reduces deformation and scratching

· Modular structure allows quick maintenance and easy adjustment

Operational Value:

· Reduces labor dependency in bottle handling section

· Improves overall line efficiency by stabilizing upstream supply

· Minimizes production interruptions caused by bottle jams or misalignment

· Supports 24/7 continuous industrial operation

High-Speed Unscrambling Principle & Dynamic Stability Control

At speeds up to 12,000 bottles per hour, the rotating disc must maintain precise alignment without vibration-induced misalignment. The Wanying High-Speed Bottle Unscrambler employs:

Dynamically balanced rotating disc – precision-balanced to minimize vibration at high rotational speeds, ensuring consistent bottle orientation even at maximum output

High-speed servo-driven indexing – synchronizes disc rotation with exit conveyor speed, preventing bottle pile-up or gaps at the discharge point

Multi-stage orientation verification – three inspection points (mechanical guide, optical sensor, and weight-based check) ensure ≥99.6% accuracy across the full speed range

Instant jam recovery – upon jam detection, the system automatically reverses for 0.5 seconds and resumes forward motion, clearing 90% of jams without operator intervention

High-Speed vs. Standard Bottle Unscrambler – Performance Comparison

Pneumatic Efficiency & Air Consumption Optimization

Unlike conventional unscramblers that consume compressed air continuously, the Wanying High-Speed Bottle Unscrambler features an intelligent air-saving system:

Demand-based air supply – air is only directed to active sorting channels, reducing waste during low-speed operation or idle periods

Low-pressure operation – optimized for 0.5–0.8 MPa, compatible with standard factory air systems without requiring high-pressure upgrades

Integrated air filtration – built-in filter/regulator/lubricator (FRL) unit protects pneumatic components from moisture and contamination, extending service life

High-Speed Line Synchronization & Bottle Flow Control

At high speeds, consistent bottle spacing is critical for downstream filling and capping equipment. The Wanying High-Speed Bottle Unscrambler features:

Encoder-based speed matching – automatically adjusts unscrambler output speed to match downstream filling machine speed via real-time encoder feedback

Active bottle spacing control – maintains consistent bottle pitch (adjustable 50–200mm) to prevent pile-up at filling machine infeed

Buffer zone management – built-in accumulating conveyor stores 50–100 bottles as a buffer, absorbing speed fluctuations between upstream unscrambler and downstream filler

Line stop coordination – when downstream machine stops, the unscrambler automatically reduces speed to prevent bottle pressure build-up

Comparison with Traditional Bottle Feeding Methods

Compared with conventional bottle feeding solutions, Wanying’s High-speed Bottle Unscrambler offers significant improvements in automation level and production stability.

1. Manual Bottle Feeding vs Automated Unscrambling

· Traditional: High labor cost, inconsistent speed, frequent interruptions

· Wanying system: Fully automatic, continuous feeding, stable output

2. Low-Speed Unscrambler vs High-Speed Model

· Traditional equipment: Limited capacity, unsuitable for large production lines

· Wanying high-speed system: Supports up to 12,000 bottles/hour with stable accuracy

3. Basic Mechanical Sorting vs Intelligent Control System

· Traditional: Mechanical-only guidance, higher error rate

· Wanying system: PLC-controlled intelligent synchronization with downstream machines

4. Production Line Efficiency Impact

· Traditional systems often become bottlenecks in high-speed filling lines

· Wanying system ensures smooth upstream flow, maximizing total line efficiency

Industrial Value Summary

By combining high-speed automation, precision orientation control, and stable continuous feeding, the Wanying High-speed Bottle Unscrambler significantly improves the efficiency of modern bottling production lines.

It is not just a bottle sorting machine—it is a critical infrastructure component for building fully automated, high-capacity packaging systems in beverage, dairy, condiment, and liquid food industries.

Service Commitment

High-speed unscramblers operate at the front of the production line—when they stop, the entire line stops. Wanying provides priority support:

Warranty: 12 months on complete machine (excluding consumables)

Spare parts availability: 1-year guarantee for rotating disc, guide rails, sensors, PLC units, and pneumatic components

Standard consumables kit included: sensor spare units (2 sets), O-ring seals, guide rail inserts (1 set), drive belts (1 set), air filter elements (2 pcs)

Emergency technical support: Remote diagnosis within 1 hour (priority response for high-speed lines)

Premium Components for High-Speed Reliability

At 12,000 bottles/hour, every component must withstand continuous high-load operation:

PLC control: Siemens

Servo drives: Yaskawa / Schneider

Sensors: OMRON / SICK (high-speed rated)

Pneumatic components: SMC / Airtac

Electrical contactors: Schneider Electric

Frequency inverters: Schneider / Danfoss

Frequently Asked Questions

Q1: What is the main difference between high-speed and standard bottle unscramblers?

High-speed models are designed for larger production capacities (up to 12000 bottles/hour) and offer stronger stability for continuous industrial operation.

Q2: Can the machine handle different bottle sizes in one production line?

Yes, it supports adjustable guide rails and modular components to accommodate different bottle diameters within the specified range.

Q3: Is it suitable for fragile PET bottles?

Yes, the system uses controlled conveying and gentle positioning to minimize impact and prevent bottle deformation.

Q4: Does it require high air consumption?

It operates within 0.5–0.8 MPa air pressure, optimized for efficient industrial use without excessive consumption.

Q5: Can it be integrated into existing production lines?

Yes, it supports modular integration and can be connected with most filling, capping, and labeling systems for full-line automation.
