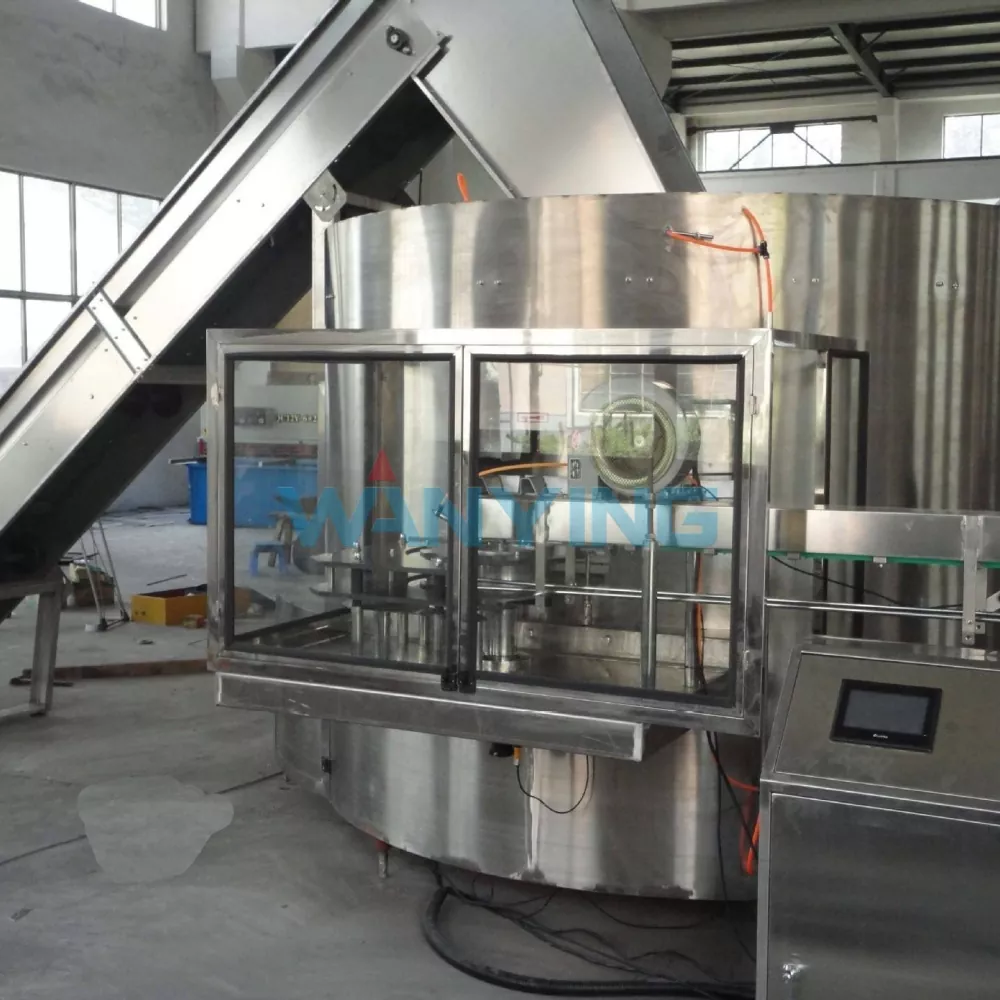

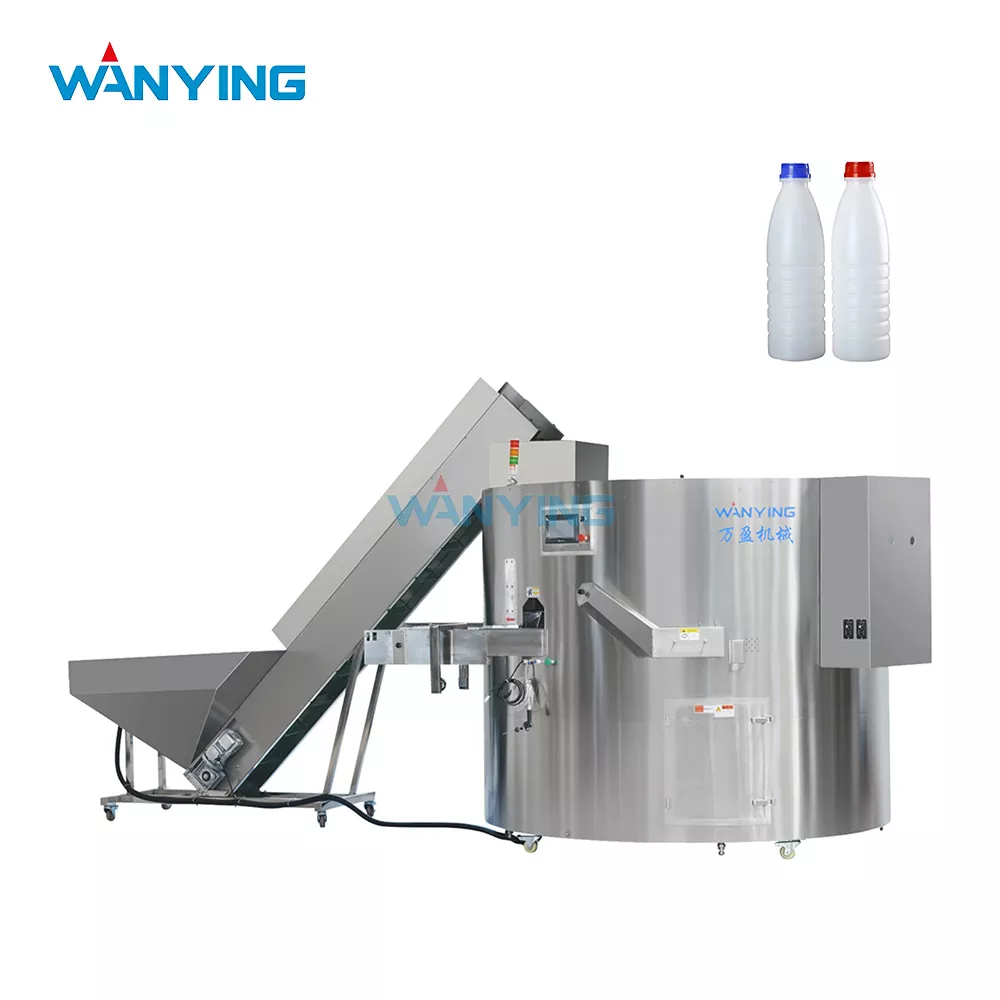

Fully Automatic Bottle Unscrambler

Wanying is a professional manufacturer specializing in filling and packaging automation systems for beverage, condiment, dairy, and liquid food industries. With a 3000 ㎡ production base, multiple patented technologies, and over 1300 engineering project applications, the company delivers Fully Automatic Bottle Unscrambler solutions and complete turnkey production line integration, supporting global customers in upgrading to high-efficiency automated manufacturing systems.

Core Advantages

1. High-Efficiency Automatic Sorting System

The machine automatically organizes randomly placed bottles into an orderly production flow, significantly reducing manual handling and improving upstream line efficiency for filling systems.

2. Gentle Bottle Handling Technology

Equipped with low-impact conveying and positioning mechanisms, the system prevents bottle scratches, deformation, or tipping, ensuring stable feeding for PET container production lines.

3. Stable Continuous Feeding Performance

Designed for high-speed production environments, the system maintains uninterrupted bottle supply to downstream filling machines, reducing bottlenecks and improving overall line efficiency.

Technical Parameters

The Fully Automatic Bottle Unscrambler can be integrated with filling, capping, labeling, and packing machines to form a complete automated production line.

Bottle Unscrambling Principle & Sorting Mechanism

The Fully Automatic Bottle Unscrambler utilizes a rotating disc with precision-engineered pockets that match bottle dimensions. As bottles are loaded into the hopper, the rotating disc carries them upward. Bottles that fall into the correct orientation (neck-down or neck-up, depending on downstream requirements) pass through to the exit conveyor, while misaligned bottles are redirected back into the hopper for reorientation.

Key Mechanisms:

Sorting disc with adjustable pockets – pockets are sized to match bottle neck diameter (50–150mm range), ensuring only properly oriented bottles pass through

Automatic jam detection & reversal – sensors detect bottle jams and momentarily reverse the disc to clear blockages without manual intervention

Dual-sensor verification (optical + mechanical) – ensures sorting accuracy ≥99.5%

Bottle Orientation Options:

Neck-down orientation – for filling lines where bottles are rinsed before filling

Neck-up orientation – for lines where bottles are filled directly after unscrambling

Quick Changeover for Different Bottle Shapes

The machine supports various PET bottle shapes, including round and square designs. Changeover between different bottle sizes (50–150mm) typically takes 5–15 minutes:

Adjustable guide rails – tool-free adjustment for different bottle diameters

Interchangeable sorting disc pockets – quick-change pocket inserts for different neck sizes

PLC recipe storage – up to 50 bottle profiles stored for instant recall

Jam Detection & Misdirected Bottle Rejection

The machine is equipped with:

Jam detection sensors – monitor bottle flow and automatically stop the disc if a jam is detected, preventing bottle damage

Misdirected bottle rejection – optical sensors detect improperly oriented bottles at the exit and redirect them back to the hopper

Low hopper level alert – alerts operator when bottle supply is low, preventing line starvation

Application Scenarios

Wanying Fully Automatic Bottle Unscrambler is widely used in:

· Bottled water and beverage factories

· Condiment and vinegar production plants

· Dairy and liquid food processing lines

· Pharmaceutical liquid packaging workshops

· Large-scale OEM/ODM bottling facilities

It is especially suitable for high-speed production environments requiring stable bottle feeding and reduced manual labor intervention.

Manufacturing Quality & Engineering Assurance

Wanying applies strict industrial manufacturing standards and precision engineering processes:

· CNC-machined structural components for high accuracy

· Full assembly alignment inspection before shipment

· 72-hour continuous operation testing for stability validation

· High-quality pneumatic and electrical components selection

· Standardized modular assembly for consistent performance

The company also holds multiple technical patents and follows ISO-aligned quality management practices, ensuring each Fully Automatic Bottle Unscrambler meets industrial reliability standards for long-term production use.

Premium Components:

PLC control: Siemens

Sensors: OMRON / SICK

Pneumatic components: SMC / Airtac

Electrical contactors: Schneider Electric

Service Commitment

Warranty: 12 months on complete machine (excluding consumables)

Spare parts availability: 1-year guarantee for sorting disc, guide rails, sensors, and PLC units

Standard consumables kit included: sensor spare units, O-ring seals, guide rail inserts, drive belts

Technical support: Remote diagnosis within 2 hours

Frequently Asked Questions

Q1: Can the Bottle Unscrambler handle different bottle shapes?

Yes, it supports various PET bottle shapes, including round and square designs, with adjustable guide systems for flexible production.

Q2: Is the feeding speed adjustable?

Yes, the system allows speed adjustment through PLC control to match different filling line requirements.

Q3: Will bottles get damaged during sorting?

No, the machine uses a gentle guiding and positioning structure designed to minimize friction and prevent bottle deformation or scratches.

Q4: Can it be connected to existing production lines?

Yes, it supports modular integration and can connect with most standard filling and packaging equipment.

Q5: How does Wanying ensure long-term operational stability?

Through precision manufacturing, continuous testing, patented structural design, and high-quality component selection, ensuring consistent and reliable performance in industrial environments.
