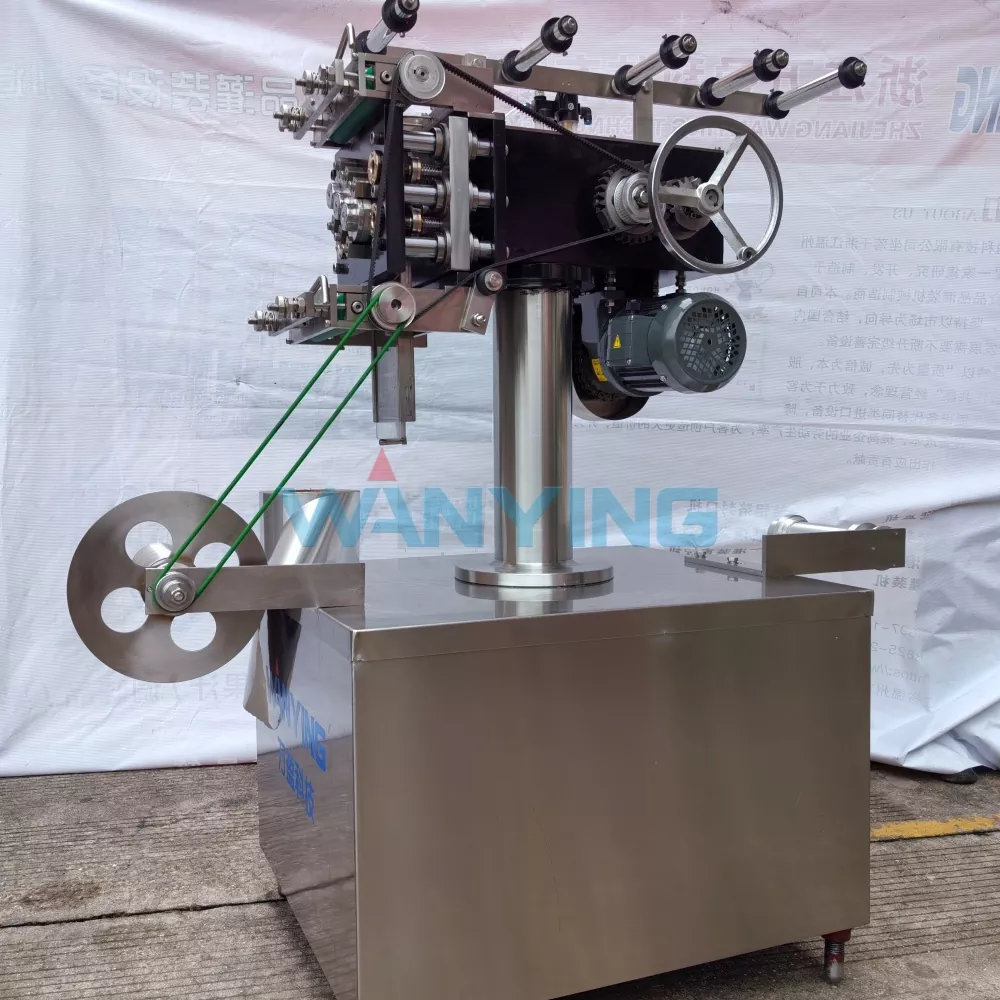

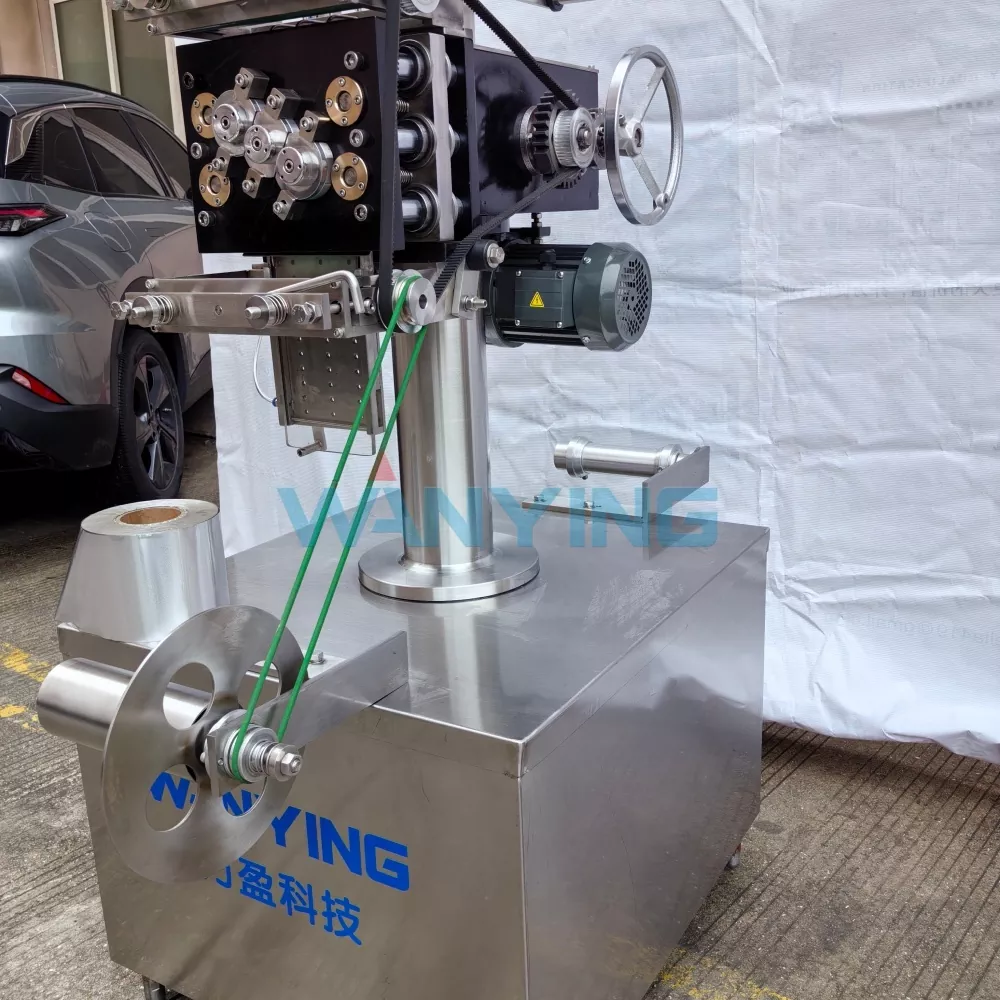

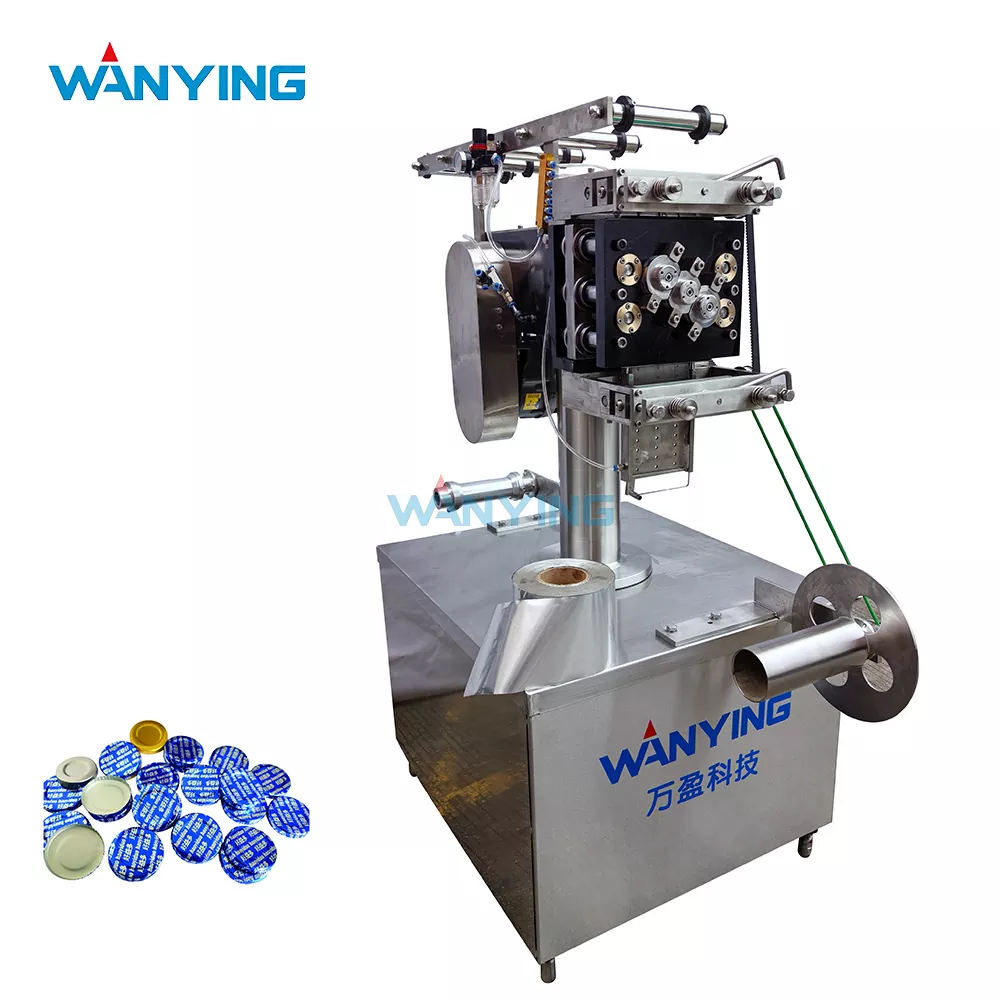

Aluminum Foil Lid Making Machine

Wanying is a specialized manufacturer of food packaging automation systems covering filling, sealing, capping, and consumable forming equipment for beverage, condiment, dairy, and fermented food industries. With a 3000 ㎡ production base, multiple patented structural technologies, and over 1300 global engineering applications, the company provides Aluminum foil lid making machine solutions that support high-precision packaging consumables production and integrated automation systems for global industrial buyers.

Product Structural Engineering & Forming Principle

The Aluminum Foil Lid Making Machine is engineered as a continuous precision stamping system designed to convert aluminum foil roll stock into standardized sealing lids used in food, dairy, and pharmaceutical packaging industries. Its core function is to ensure dimensional consistency and sealing compatibility across high-volume production.

Structural Composition Overview:

· Foil unwinding and tension stabilization system

· Progressive die forming and multi-stage stamping unit

· Precision cutting and edge trimming module

· Waste collection and material recycling system

· PLC-based synchronized motion control system

Engineering Logic:

The machine operates through a step-by-step progressive forming mechanism rather than single-impact stamping. This ensures material stress is evenly distributed, reducing cracking, curling, or deformation during high-speed production.

Stamping Principle & Die Structure

The Aluminum Foil Lid Making Machine operates on a progressive stamping principle. The aluminum foil is fed continuously through a series of stamping stations, with each station performing a specific forming operation. Key structural elements include:

Multi-cavity die design – supports 4–12 cavities per stroke, enabling high-output production

Quick die change system – typical changeover time of 15–30 minutes between lid sizes

Stamping force – recommended press capacity of 45 tons or higher for consistent foil cutting

Die life monitoring – integrated counter tracks total cycles; preventive maintenance recommended at 80% of rated life (2.4 million cycles)

Progressive Forming Steps:

Station 1: Foil indexing and pilot hole piercing

Station 2: Draw forming

Station 3: Edge trimming

Station 4: Final cutting and separation

Precision & Tolerance Comparison

Industry Application Mapping & Product Positioning

This equipment is not a universal stamping device but a dedicated consumable production system for sealed packaging industries, especially where hygiene and barrier protection are critical.

Application Mapping by Industry Demand:

Positioning Insight:

It functions as a core upstream consumable manufacturing unit, supplying sealing materials for downstream filling and packaging systems.

Selection Logic & Configuration Decision Guide

Choosing the right Aluminum Foil Lid Making Machine depends on production goals rather than simple speed comparison.

Key Selection Dimensions:

· Required output capacity (small batch vs industrial mass production)

· Foil thickness compatibility (standard vs reinforced barrier foil)

· Lid geometry complexity (flat, embossed, multi-layer sealing structures)

· Mold change frequency (single SKU vs multi-product production)

· Integration requirement with downstream packaging systems

Configuration Decision Table:

Automation Expansion & System Scalability

Beyond standalone production, the machine is designed as part of a scalable consumable manufacturing ecosystem.

Expansion Capabilities:

· Compatible with printing systems for branded foil lids

· Supports inline slitting and material preparation systems

· Can integrate with automatic stacking and packaging modules

· Allows future upgrade to fully automated roll-to-pack production lines

System-Level Value:

Instead of operating as a single machine, it functions as a modular node within a larger packaging consumables production network, enabling factories to expand capacity without replacing core equipment.

Service Commitment

Warranty: 12 months on complete machine (excluding molds/consumables)

Spare parts availability: 1-year guarantee for cutting dies, sensors, and PLC units

Standard consumables kit included: cutting blades, seal rings, sensor spare units

Technical support: Remote diagnosis within 2 hours

Frequently Asked Questions

Q1: What products can Aluminum foil lid making machine produce?

It is mainly used for aluminum foil lids for yogurt cups, beverage cups, condiment containers, and similar food packaging applications.

Q2: Can the machine support different lid shapes?

Yes, by changing the mold system, it can produce round, oval, and customized sealing lids.

Q3: Is production speed adjustable?

Yes, the PLC control system allows speed adjustment based on material thickness and production requirements.

Q4: How long does the mold last?

Under normal operation conditions, the mold lifespan can reach over 3 million cycles depending on maintenance.

Q5: Can it connect with printing or packaging lines?

Yes, it supports integration with printing, slitting, and downstream packaging equipment for a complete production system.
