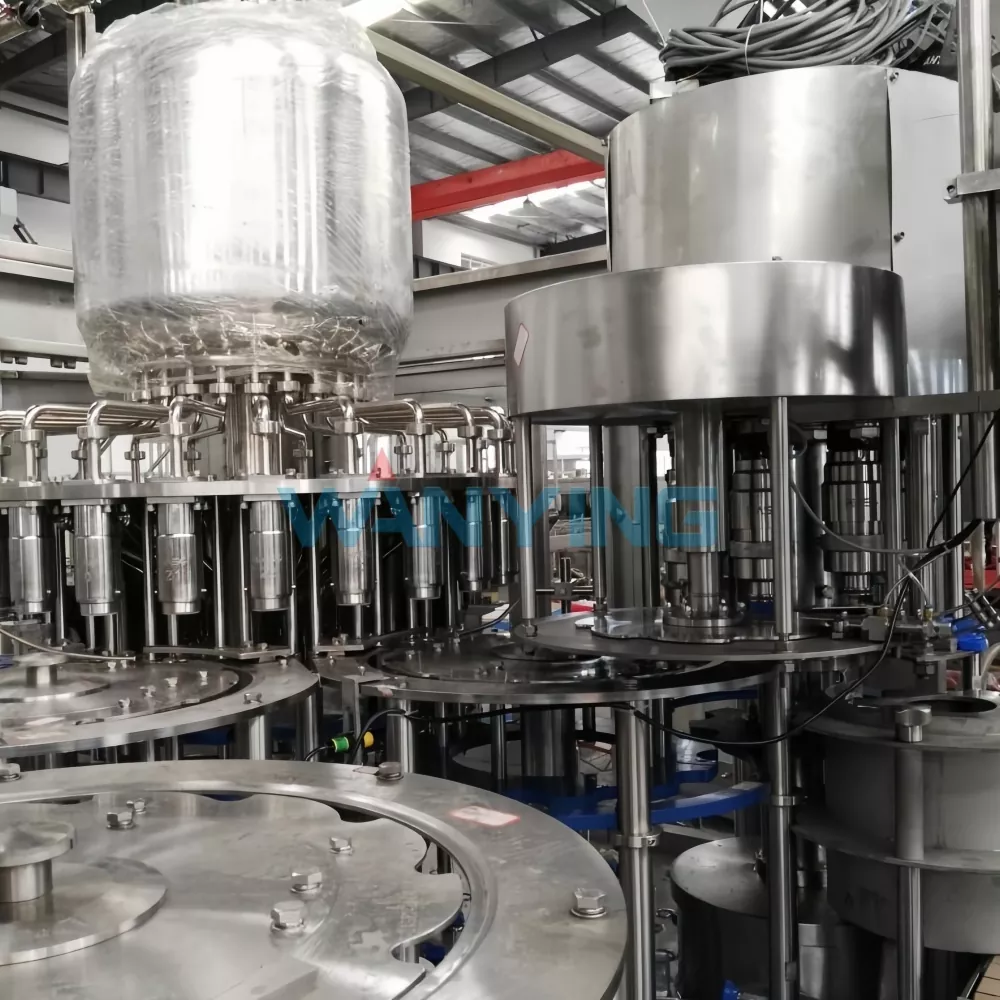

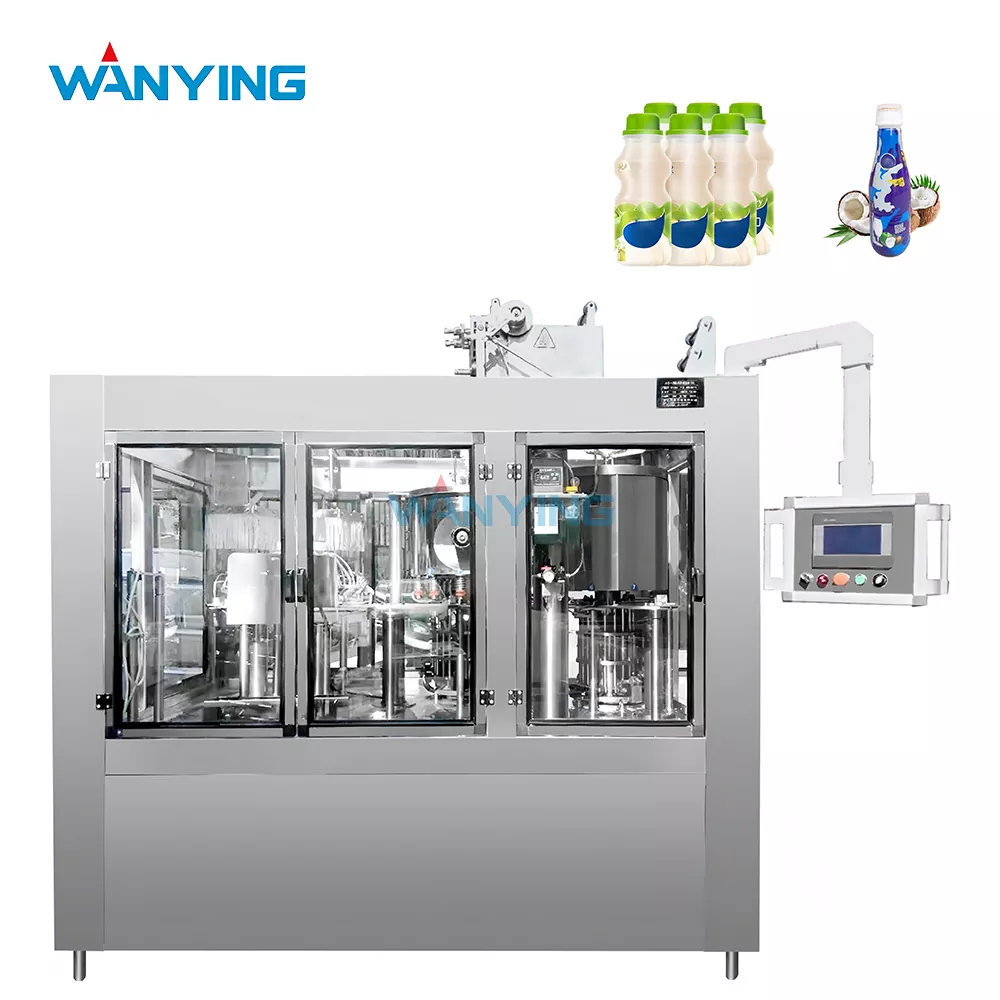

Aluminum Foil Filling and Capping Machine

As packaging standards continue to rise, manufacturers require equipment that delivers both precision and product protection. The Aluminum Foil Filling and Capping Machine developed by Wanying combines filling, foil sealing and cap tightening into one coordinated process, minimizing manual handling while improving line efficiency.

Unlike standard equipment designed for universal applications, Wanying focuses on practical production requirements. Machines can be configured according to container size, filling volume, product viscosity and expected output, allowing customers to build a packaging solution that matches their own manufacturing process rather than adapting production to the machine.

Why Aluminum Foil Sealing Improves Product Safety

More Than Just Closing a Bottle

Aluminum foil sealing creates an additional protective barrier between the product and the outside environment. It helps preserve product quality throughout storage and transportation while giving consumers visible evidence that the package has not been opened.

Benefits include:

· Reduces the risk of leakage during transport

· Helps maintain product freshness

· Improves packaging hygiene

· Provides tamper-evident protection

· Supports automated, continuous production

· Suitable for cold-filled and hot-filled liquid products

Packaging Flexibility for Different Products

One Machine, Multiple Packaging Possibilities

The Aluminum Foil Filling and Capping Machine is designed to accommodate changing production demands without requiring extensive equipment replacement.

It is suitable for packaging:

· Fruit juice and flavored beverages

· Milk and dairy drinks

· Purified and mineral water

· Soy sauce and vinegar

· Oyster sauce and liquid seasonings

· Edible oils

· Liquid nutritional supplements

Compatible packaging options include:

This flexibility allows manufacturers to expand product lines while keeping packaging operations efficient and organized.

Electromagnetic Induction Sealing Principle

The aluminum foil sealing station operates on high-frequency electromagnetic induction technology. As the foil-lined cap passes through the induction coil, eddy currents are generated in the aluminum layer, instantly heating it to the activation temperature of the heat-seal coating. Under controlled pressure, the coating bonds with the bottle mouth to form a tamper-evident, leak-proof seal.

Quality Assurance Features:

Foil presence sensor – detects missing foil before capping, triggers automatic rejection

Seal integrity check – optional vision inspection system verifies seal quality at line speed

Temperature deviation alert – automatic shutdown if sealing temperature drifts beyond ±5°C

Precision Capping with Torque Control

After foil sealing, the capping station applies the outer cap with a controlled torque of 1.0–10.0 Nm (adjustable via HMI). A built-in torque sensor provides real-time feedback to the servo motor: when the preset torque is reached, the motor instantly stops and releases the cap. This closed-loop control ensures every cap is tightened consistently—preventing leaks from under-tightening and consumer complaints from over-tightening.

Customized Manufacturing Backed by Practical Experience

From Equipment Design to Long-Term Production Support

Rather than supplying identical machines for every customer, Wanying develops equipment around real production environments. Supported by a 3,000 ㎡ manufacturing facility, the company completes machining, assembly, testing and commissioning under one standardized production system.

Key manufacturing strengths include:

· More than 1,300 project cooperation experiences

· Dedicated engineering team for customized equipment design

· Precision machining and complete performance testing

· Strict inspection procedures covering every production stage

· Multiple independently developed technical patents

· Reliable branded electrical components for stable operation

· Installation guidance, technical training and responsive after-sales support

This customer-oriented manufacturing approach helps reduce installation time, improve equipment reliability and support future production upgrades.

Service Commitment

Warranty: 12 months on complete machine

Spare parts availability: 1-year guarantee for sealing heads, filling nozzles, torque sensors, and PLC units

Standard consumables kit included: sealing head rings, filling nozzle seals, sensor spare units, capping head grippers

Case Study – Condiment Manufacturer, Central China

Background:
A leading oyster sauce producer in Central China was struggling with inconsistent aluminum foil sealing on their glass bottle line. The existing machine frequently produced incomplete seals due to unstable heating temperature, resulting in leakage complaints from distributors and a defect rate of approximately 3.5%. Manual rework was costly and time-consuming.

Challenge:

Oyster sauce residue on bottle mouths interfered with foil adhesion

Temperature fluctuations in the sealing head caused inconsistent seal strength

No automatic rejection system for missing or misaligned foil

Production line downtime averaged 45 minutes per shift for seal-related issues

Solution:
After on-site evaluation, Wanying installed the Aluminum Foil Filling and Capping Machine with:

Customized pre-sealing air-knife to clean bottle mouths before foil application

Servo-controlled temperature system maintaining ±5°C accuracy

Automatic foil presence detection with rejection gate

Results (3-month follow-up):

Seal defect rate reduced from 3.5% to <0.3%

Downtime from seal issues reduced to <10 minutes per shift

Operator intervention reduced from 3 to 1 person per shift

Frequently Asked Questions

Q1 Does aluminum foil sealing replace the bottle cap?

No. The aluminum foil provides an inner protective seal, while the cap secures the package externally. Using both offers better product protection.

Q2 Can the machine package both low- and high-viscosity liquids?

Yes. Filling systems can be selected according to product characteristics, making the machine suitable for beverages, sauces and other liquid or semi-liquid products.

Q3 Can the machine be connected to existing production equipment?

Yes. It can be integrated with bottle unscramblers, labeling machines, sterilizers, coding systems and automatic cartoning equipment to form a complete packaging line.

Q4 How does Wanying support customized projects?

The engineering team evaluates production capacity, bottle specifications, packaging requirements and factory layout before recommending a suitable equipment configuration.

Q5 What services are available after installation?

Wanying provides equipment commissioning, operator training, maintenance guidance, spare parts support and ongoing technical assistance to help customers maintain stable production over the long term.
